Quattro-II 12/3000/120-50/50 2x120V

Quattro-II 12/3000/120-50/50 2x120V

Quattro-II 12/3000/120-50/50 2x120V

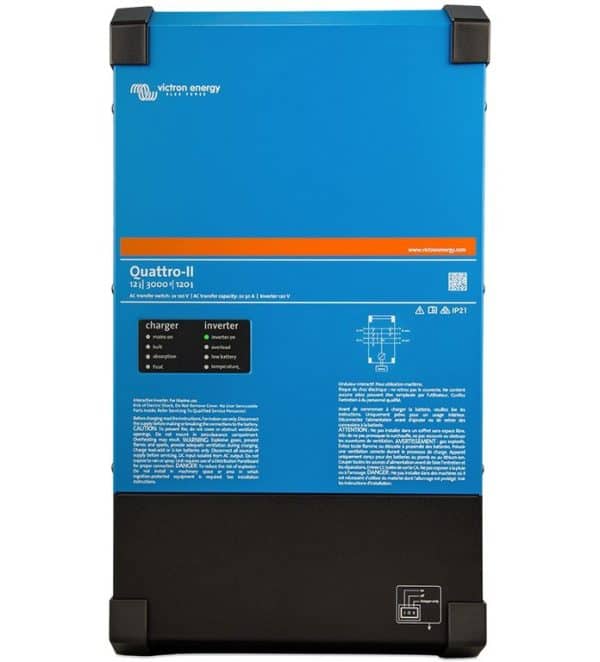

Please note: this is a 120V model. Therefore, you cannot return this item. The Victron Quattro-II 12/3000/120-50/50 120V inverter/charger combination, like the MultiPlus, is a powerful true sine wave inverter, an advanced battery charger with adaptive charge technology, and high-speed AC transfer switches in a single compact enclosure. Unlike the MultiPlus, the Quattro accepts two AC inputs and automatically connects to the active source. Its many special features include hybrid PowerAssist technology and multiple system integration features such as three-phase or single-phase operation, and parallel operation. All Quattros have a robust steel/aluminum enclosure (IP21 protection class). Quattro 12/3000/120 inverter/charger specifications: Input voltage: 120VAC and 12VDC | Output voltage: 120VAC Output power: 3000VA / 2400W | Peak: 6000W AC inputs: 2 | AC outputs: 2 PowerControl: yes | PowerAssist: yes | Transfer switch: 50A/50A Charging current house battery: 120A Maximum pass-through current: 2 x 50A Recommended battery capacity: 400 – 1200 Ah Recommended DC fuse: 400A – See "Order directly" Battery connection: Four M8 bolts (2 positive and 2 negative connections) Battery cable (not included): 2x 50mm² – See "Order directly" Please note: the diameter (mm²) of the battery cables is based on a maximum length of 5 meters.

We'd be happy to provide you with more information about this product. Please contact us.
