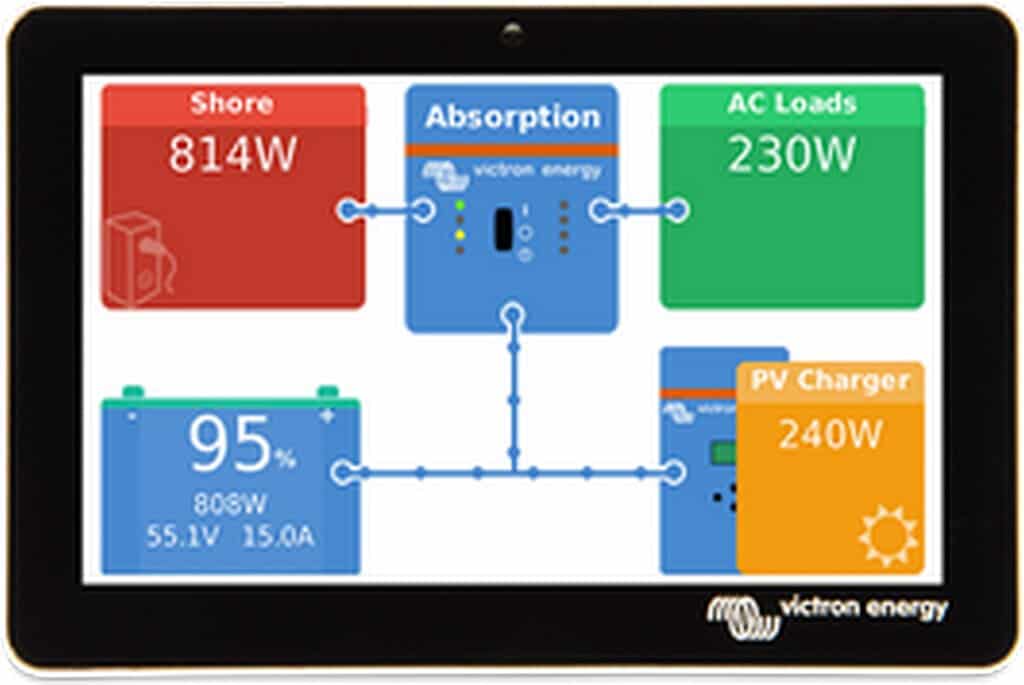

Cerbo GX Touch 50 Victron GX Touch 50 The GX Touch 50 is the 5-inch touchscreen display for the Cerbo GX and Cerbo GX MK2. The screen displays the Remote Console of the GX device, providing full local control: system overview, live measurements, and all settings, without a phone, laptop, or internet connection. The display connects to the GX device with a single cable and is screwed onto a panel or dashboard. Applications A GX device without a screen works fine remotely, but on board or in the instrument panel, the user simply wants to view and operate the system. This display makes that possible without any routing: drill four holes and screw it in place; no rectangular cutout is required. The waterproof design and the included protective cover also make it suitable for outdoor installations and helm stations in direct sunlight. * Marine: helm station, cabin panel, or switch panel * Motorhome and commercial vehicle: dashboard or service cabinet * ESS, home battery, and off-grid: local control at the installation * Installations without a fixed internet connection Full control via the screen The Remote Console of the connected GX device appears on the display. Battery status, consumption, PV, generator, and grid power, tank levels, and temperatures are visible at a glance. Settings of the GX device and of the components connected via VE.Direct and VE.Bus can be adjusted directly on the screen. One cable The display is connected to the GX device via the supplied 2-meter cable; this provides image, power, and touch control. On the Cerbo GX MK2, the USB side can be connected to any of the three USB ports. HDMI and USB extension cables are available for longer distances. Mounting The screen is attached to the front panel with four screws; a rectangular cutout is not required. All mounting hardware is included. Victron publishes a drilling template; see the documentation below. Separate accessories are available for wall mounting or for reusing an existing CCGX cutout. Waterproof and protected. The front is rated IP54, measured without connectors. Starting with serial number HQ2242, a protective cover is included that shields the display against water, dust, and UV radiation during prolonged exposure to the sun. Documentation * Cerbo GX Manual including GX Touch (NL, HTML5) (https://www.victronenergy.com/media/pg/Cerbo_GX/nl/index-nl.html) * Cerbo GX Manual including GX Touch (EN, HTML5) (https://www.victronenergy.com/media/pg/Cerbo_GX/en/index-en.html) * Cerbo GX Manual (EN, PDF) (https://www.victronenergy.com/upload/documents/Cerbo_GX/140558-Ekrano_GX__Venus_GX__Cerbo_GX__Cerbo-S_GX_Manual-pdf-en.pdf) * Cerbo GX & GX Touch Datasheet (EN, PDF) (https://www.victronenergy.com/upload/documents/Datasheet-Cerbo-GX-GX-Touch-EN.pdf) * GX Touch 50 Dimensional Drawing (PDF) (https://www.victronenergy.com/upload/documents/GX-Touch-50.pdf) * Drilling jig GX Touch 50 (PDF) (https://www.victronenergy.com/upload/documents/Drilling-jig-GX-Touch-50.pdf) * 3D Dimensioning (PDF) (https://www.victronenergy.com/upload/documents/GX-Touch-50-(3D).PDF) * 3D model (STEP) (https://www.victronenergy.com/upload/documents/GX-Touch-50.STEP) * EU Declaration of Conformity – GX Devices (PDF) (https://www.victronenergy.com/upload/documents/GX-devices-Cerbo-Ekrano-Color-Control-Venus-Octo-EU-DOC-RED.pdf) * Victron ISO 9001 Certificate Energy (PDF) (https://www.victronenergy.com/upload/documents/ISO9001-certificate-2024-EN.pdf) * Victron GX product range – Venus OS documentation (EN) (https://www.victronenergy.com/live/venus-os:start) Victron Energy does not publish a separate manual for this display; installation and operation are described in the Cerbo GX manual, which is available in Dutch. The datasheet and certificates are exclusively in English. Videos * Unboxing the new Cerbo GX & GX Touch 50 screen (Victron Energy, EN) (https://youtu.be/3wheKaU2_qw) * Did You Know – Changing the logo on a GX device (Victron Energy, EN) (https://youtu.be/8pR9utgkjSI) Contact Are you unsure whether to choose this version or the flush variant, or would you like to know which mounting method suits your panel? Our specialists are happy to assist you with display selection, cable length, and system configuration. Please contact us (https://www.top.systems/nl/contact/). Specifications Type: Touchscreen display, 5 inch Suitable for: Cerbo GX and Cerbo GX MK2 Display resolution: 800 x 480 pixels Dimensions (hxwxd): 87 x 128 x 12.4 mm Protection class: IP54 (without connectors) Cable length: 2 meters Mounting: On top of panel, mounting material included Included: Connection cable, mounting material, protective cap (from serial number HQ2242) Manufacturer: Victron Energy Warranty: 5 years We would be happy to provide you with more information about this product. Please contact us contact join us.
