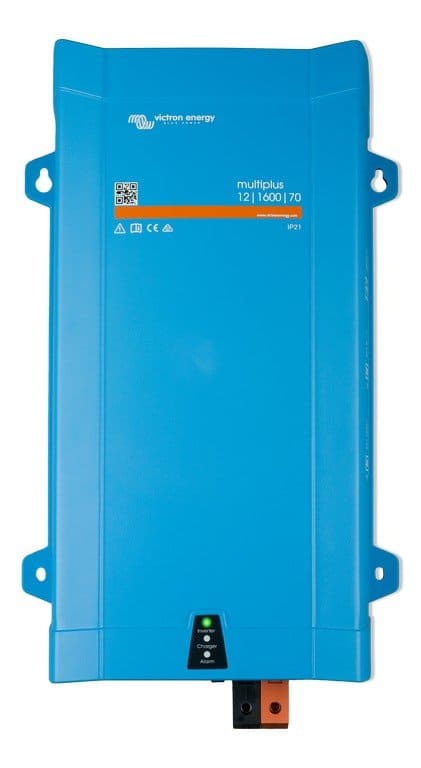

MultiPlus 12/1600/70-16

MultiPlus 12/1600/70-16

MultiPlus 12/1600/70-16 Applications Ideal for motorhomes, boats, service vans, and compact backup installations where a single unit must supplement limited shore or grid power and reliably recharge the battery bank. Also suitable as an uninterruptible emergency power supply in the event of a power outage. Inversion and charging in a single device Pure sine wave inverter, adaptive four-stage charger, and fast AC transfer switch in a single housing. Continuous power 1300 W at 25 °C, 1100 W at 40 °C, and 800 W at 65 °C, with a peak power of 2800 W. Charging of house and starter battery * House battery charging current 70 A, starter battery charging current 1 A * Absorption 14.4 V, trickle 13.8 V, storage mode 13.2 V * Battery temperature sensor included as standard Uninterruptible switching If the grid or shore power fails, the inverter takes over the connected load within 20 milliseconds. Computers and other electronics continue to operate uninterrupted. PowerControl Set the maximum shore or generator current. The device takes other consumers into account and uses only the remaining current to charge, ensuring the connection does not become overloaded. PowerAssist If the available shore or generator current is briefly too low, the inverter immediately replenishes from the battery bank. When the load drops again, the surplus is used for recharging. High Startup Power Required to start consumers with a high inrush current, such as power supplies for LED lighting, halogen lamps, and electric hand tools. Search Mode With Search Mode enabled, no-load consumption drops from 10 W to approximately 3 W. The device switches itself off at no or very low load and tests every two seconds whether power is being requested again. Programmable Relay Set as an alarm relay by default: the relay trips in the event of an alarm or pre-alarm, for example due to excessive temperature, too much ripple voltage on the input, or low battery voltage. Load capacity 230 V/4 A AC and 4 A up to 35 VDC. Parallel and 3-phase operation. Up to six units can be connected in parallel. Additionally, three identical units can be configured for a 3-phase output. Communication takes place via the VE.Bus port. Setup, monitoring, and control * DIP switches for charging voltage and Search Mode * Extensive settings via VE.Configure or the VE.Bus Smart dongle * Remote operation via an on/off switch or a control panel * Read out locally and remotely using a GX device as a communication center via the free app on smartphone or tablet and via VRM Portal – Victron Energy (https://vrm.victronenergy.com) Connection and mounting * Battery connection on 50 mm² * 230 V connection via G-ST18i connector * Internal DC fuse 200 A * Housing made of steel and ABS, protection class IP21 Available to order directly * Red battery cable 50mm² per meter, KABRD0105000 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABRD0105000) | category Battery cables (https://shop.top.systems/installatie/kabels/accu/) * Battery cable black 50mm² per meter, KABZW0105000 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABZW0105000) | category Battery cables (https://shop.top.systems/installatie/kabels/accu/) * Crimp cable lug 50mm² > M8, PSKABOG00051 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=PSKABOG00051) | category Crimp cable lugs (https://shop.top.systems/installatie/accessoires-kabels/perskabelogen/) * Red insulation cap 35/50mm², ISKP222N4V02 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP222N4V02) | category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Black insulation cap 35/50mm², ISKP222N4V14 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP222N4V14) | category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Red heat shrink tubing 50cm for 35/50/70mm battery cable, KRKR01191955 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KRKR01191955) | category Heat shrink tubing (https://shop.top.systems/installatie/accessoires-kabels/krimpkousen/) * Black heat shrink tubing 50cm for 35/50/70mm battery cable, KRKZ01191955 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KRKZ01191955) | category Heat shrink tubing (https://shop.top.systems/installatie/accessoires-kabels/krimpkousen/) * Victron MEGA-fuse fuse holder, CIP100200100 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=CIP100200100) | category Fuse holders (https://shop.top.systems/beveiligen-schakelen/zekeringhouders/) * MEGA-fuse fuse holder 2xM8, ZEKHD0000200 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ZEKHD0000200) | category Fuse holders (https://shop.top.systems/beveiligen- Schakelen/fusehouders/) * Victron Digital Multi Control 200/200A, REC020005010 — article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=REC020005010) | category Control panels (https://shop.top.systems/monitoring-control/controlpanels/) * Victron Digital Multi Control 200/200A GX (90º), DMC000200010R — article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=DMC000200010R) | category Control panels (https://shop.top.systems/monitoring-control/controlpanels/) * Victron VE.Bus Smart dongle, ASS030537010 — article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ASS030537010) * Victron battery monitor BMV-702, BAM010702000R — article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BAM010702000R) | category Battery monitors (https://shop.top.systems/monitoring-controle/accumonitors/) * Victron battery monitor BMV-702 black, BAM010702200R — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BAM010702200R) | category Battery monitors (https://shop.top.systems/monitoring-controle/accumonitors/) * Victron Battery Monitor BMV-712 Smart, BAM030712000R — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BAM030712000R) | category Accumonitors (https://shop.top.systems/monitoring-controle/accumonitors/) * TS Enovations Insulation Monitor IMD3, SHP302501450-C — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=SHP302501450-C) | Category Insulation monitors (https://shop.top.systems/beveiligen-schakelen/isolatiebewakers/) Related products * MultiPlus 12/1200/50-16, PMP122120000 — view item (https://shop.top.systems/omvormen-laden/omvormen-laden-combi/multiplus-12-1200-50-16.html) * MultiPlus 12/1600/70-16 Compact, CMP122160000 — view item (https://shop.top.systems/omvormen-laden/omvormen-laden-combi/multiplus-12-1600-70-16-compact.html) Documentation * Datasheet MultiPlus 500VA – 2000VA (EN) (https://www.victronenergy.com/upload/documents/Datasheet-MultiPlus-500VA-2000VA-EN.pdf) * MultiPlus 1600VA Manual (NL/EN) (https://www.victronenergy.com/upload/documents/Manual-MultiPlus-1600VA-EN-NL-FR-DE-ES-IT.pdf) * MultiPlus 12V 24V 48V 1600VA Dimensions (https://www.victronenergy.com/upload/documents/MultiPlus-12V-24V-48V-1600VA.PDF) * ECE R10-6 Certificate MultiPlus 12/1600/70-16 (https://www.victronenergy.com/upload/documents/Certificate-Automotive-ECE-R10-6-MultiPlus-12-1600-70-16.pdf) * MultiPlus 500VA – 2000VA Declaration of Conformity (https://www.victronenergy.com/upload/documents/MultiPlus-500VA-2000VA-2022-07-04.pdf) * Victron Energy ISO 9001 Certificate (https://www.victronenergy.com/upload/documents/ISO9001-certificate-2024-EN.pdf) Videos * Did You Know – You can update a MultiPlus Firmware using an Android Phone? (EN) (https://youtu.be/AEPmjkyg7UY) Contact Unsure about the correct charging current, cable cross-section, or fuse rating for your installation? Our product specialists will calculate the system for you and help you consider expansion with a GX device or battery monitor. Contact us (https://www.top.systems/nl/contact/). Specifications Continuous output power 25 °C 1600 VA / 1300 W Continuous output power 40 / 65 °C 1100 W / 800 W Peak power 2800 W House battery charging current 70 A Starter battery charging current 1 A Automatic transfer switch 16 A Battery voltage 12 V DC input range 9.5 – 17 V Output voltage 230 VAC ±2 %, 50 Hz ±0.1 % AC input range inverter 187 – 250 V, 50/60 Hz AC input range charger 187 – 265 VAC, 45 – 65 Hz Charging voltage absorption / trickle / storage 14.4 / 13.8 / 13.2 V Maximum efficiency 93 % No-load power 10 W No-load power in Search Mode 3 W Internal DC fuse 200 A Battery connection 50 mm² 230 V AC connection G-ST18i connector Battery temperature sensor Yes Programmable relay Yes, 230 V/4 A AC and 4 A up to 35 VDC Communication port VE.Bus Parallel and 3-phase Yes Protection class IP21 Housing material Steel/ABS Operating temperature -40 to +65 °C Dimensions (hxwxd) 470 x 265 x 120 mm Weight 10.2 kg Safety standards EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1 EAN 8719076044949 We would be happy to provide you with more information about this product. Please contact us contact join us.
