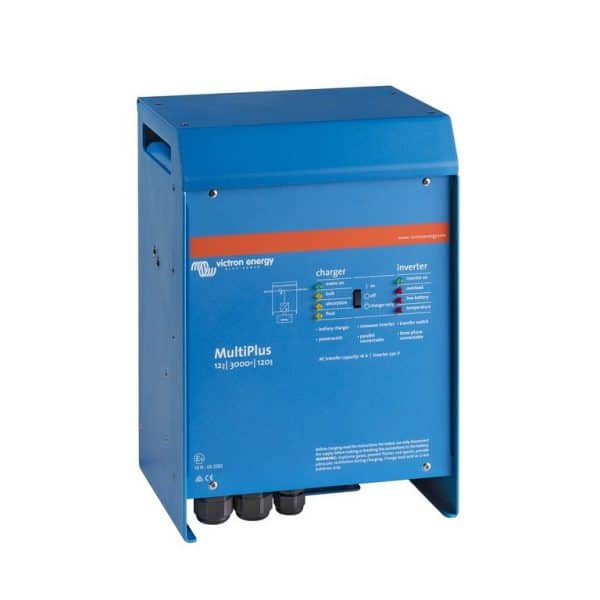

MultiPlus 12/3000/120-16 Applications For larger 12 V installations in yachts, motorhomes, and work vehicles: one device for inverting, charging, and switching, with a second AC output for heavy consumers that must not drain the battery bank as soon as shore power fails. Inverting and charging in one device Pure sine wave inverter, adaptive four-stage charger, and fast AC switch in a single aluminum housing. Continuous power 2400 W at 25 °C, 2200 W at 40 °C, and 1700 W at 65 °C, with a peak power of 6000 W. Charging of house and starter battery * House battery charging current 120 A, starter battery charging current 4 A * Absorption 14.4 V, trickle 13.8 V, storage mode 13.2 V * Battery temperature sensor included as standard Two AC outputs The main output is uninterruptible. The 16 A auxiliary output switches off as soon as no external AC source is available and is therefore intended for heavy consumers such as a water heater, which must not discharge the battery bank. Uninterruptible switching: In the event of a loss of mains, shore, or generator power, the inverter takes over the load within 20 milliseconds, ensuring that computers and other electronics continue to operate undisturbed. PowerControl: Set the maximum shore or generator current via the control panel. The device charges only with the remaining current in addition to the other consumers, so that the connection does not become overloaded. PowerAssist: Short-term peaks exceeding the shore or generator current are immediately replenished from the battery bank. When the load drops again, the surplus is used for recharging. Search Mode and AES * Search Mode reduces idle power consumption from 20 W to approximately 8 W * AES (Automatic Economy Switch) reduces idle and low-load power consumption to approximately 15 W * AES is only applicable in a stand-alone configuration Programmable relay Standard configuration as an alarm relay: the relay trips upon an alarm or pre-alarm, for example due to excessive temperature, excessive input ripple voltage, or low battery voltage. The relay can also be used for generator start/stop. Parallel and 3-phase operation Up to six units can be connected in parallel for higher power output. Additionally, three identical units can be configured for a 3-phase output. Communication takes place via the VE.Bus port; a general-purpose communication port is also available. Setup, monitoring, and control * Basic settings via DIP switches * Parallel and 3-phase systems via VE.Bus Quick Configure and VE.Bus System Configurator * Off-grid, grid-connected, and self-consumption applications via assistants * Read out locally and remotely using a GX device as a communication center via the free app on smartphone or tablet and via VRM Portal – Victron Energy (https://vrm.victronenergy.com) Connection and mounting * Battery connection via four M8 bolts (two plus and two minus), battery cables not included * 230 V connection via screw terminals up to 13 mm² * Aluminum housing, protection class IP20 Available to order directly * Red battery cable 95mm² per meter, KABRD0109500 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABRD0109500) | category Battery cables (https://shop.top.systems/installatie/kabels/accu/) * Battery cable black 95mm² per meter, KABZW0109500 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABZW0109500) | category Battery cables (https://shop.top.systems/installatie/kabels/accu/) * Battery cable red 50mm² per meter, KABRD0105000 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABRD0105000) | category Battery cables (https://shop.top.systems/installatie/kabels/accu/) * Battery cable black 50mm² per meter, KABZW0105000 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABZW0105000) | category Battery cables (https://shop.top.systems/installatie/kabels/accu/) * Crimp cable lug 95mm² > M8, PSKABOG00094 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=PSKABOG00094) | category Crimp cable lugs (https://shop.top.systems/installatie/accessoires-kabels/perskabelogen/) * Crimp cable lug 50mm² > M8, PSKABOG00051 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=PSKABOG00051) | category Crimp cable lugs (https://shop.top.systems/installatie/accessoires-kabels/perskabelogen/) * Red insulation cap 70/95mm², ISKP232N4V02 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP232N4V02) | category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Insulation cap black 70/95mm², ISKP232N4V14 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP232N4V14) | category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Insulation cap red 35/50mm², ISKP222N4V02 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP222N4V02) | category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Insulation cap black 35/50mm², ISKP222N4V14 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP222N4V14) | category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Heat shrink tubing red 50cm for 35/50/70mm battery cable, KRKR01191955 — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KRKR01191955) | category Heat shrink tubing (https://shop.top.systems/installation/accessories-cables/shrinkstocks/) * MEGA-fuse fuse holder 2xM8, ZEKHD0000200 — article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ZEKHD0000200) | category Fuse holders (https://shop.top.systems/beveiligen- Schakelen/fusehouders/) * Victron Digital Multi Control 200/200A, REC020005010 — article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=REC020005010) | category Control panels (https://shop.top.systems/monitoring-control/controlpanels/) * Victron Digital Multi Control 200/200A GX (90º), DMC000200010R — article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=DMC000200010R) | category Control panels (https://shop.top.systems/monitoring-control/controlpanels/) * Victron battery monitor BMV-702, BAM010702000R — article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BAM010702000R) | category Battery monitors (https://shop.top.systems/monitoring-controle/accumonitors/) * Victron battery monitor BMV-702 black, BAM010702200R — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BAM010702200R) | category Battery monitors (https://shop.top.systems/monitoring-controle/accumonitors/) * Victron Battery Monitor BMV-712 Smart, BAM030712000R — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BAM030712000R) | category Accumonitors (https://shop.top.systems/monitoring-controle/accumonitors/) * TS Enovations Insulation Monitor IMD3, SHP302501450-C — item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=SHP302501450-C) | Category Insulation monitors (https://shop.top.systems/beveiligen-schakelen/isolatiebewakers/) Related products * MultiPlus 12/2000/80-32, PMP122200000 — view item (https://shop.top.systems/omvormen-laden/omvormen-laden-combi/multiplus-12-2000-80-32.html) * MultiPlus-II 12/3000/120-32, PMP122305010 — view item (https://shop.top.systems/omvormen-laden/omvormen-laden-combi/multiplus-ii-12-3000-120-32.html) Documentation * Datasheet MultiPlus Inverter/Charger 800VA – 5kVA (EN) (https://www.victronenergy.com/upload/documents/Datasheet-MultiPlus-inverter-charger-800VA-5kVA-EN-.pdf) * Manual MultiPlus 3k 230V 16A/50A (NL/EN) (https://www.victronenergy.com/upload/documents/Manual-MultiPlus-3k-230V-16A-50A-(firmware-xxxx4xx)-EN-NL-FR-DE-ES-SE.pdf) * Quick Install Guide MultiPlus 12V 24V 48V 3000VA 16A 230Vac (EN) (https://www.victronenergy.com/upload/documents/Quick-Install-Guide-Multiplus-12V-24V-48V-3000VA-16A-230Vac-EN.pdf) * Safety Certificate EN/IEC 62109-1 and IEC 60335-2-29 MultiPlus 3kVA (https://www.victronenergy.com/upload/documents/Certificate-Safety-EN-IEC-62109-1-&-IEC-60335-2-29-all-Multiplus-&-Quattros-incl.-15k.pdf) * Victron Energy ISO 9001 certificate (https://www.victronenergy.com/upload/documents/ISO9001-certificate-2024-EN.pdf) Contact Would you like to know which cable cross-section, fuse, and battery bank configuration correspond to a charging current of 120 A? Our product specialists will calculate the system with you and advise on expansion with a GX device, control panel, or battery monitor. Contact us (https://www.top.systems/nl/contact/). Specifications Continuous output power 25 °C 3000 VA / 2400 W Continuous output power 40 / 65 °C 2200 W / 1700 W Peak power 6000 W House battery charging current 120 A Starter battery charging current 4 A Automatic transfer switch 16 A Auxiliary output 16 A Battery voltage 12 V DC input range 9.5 – 17 V DC input current 250 A Output voltage 230 VAC ±2 %, 50 Hz ±0.1 % Maximum continuous output current 11 A~ AC input range inverter 187 – 250 V, 50/60 Hz AC input range charger 187 – 265 VAC, 45 – 65 Hz Charging voltage absorption / trickle / storage 14.4 / 13.8 / 13.2 V Maximum efficiency 93 % No-load power 20 W No-load power in AES / Search Mode 15 W / 8 W Number of AC outputs: 2 Battery connection: Four M8 bolts (2 positive, 2 negative) 230 V AC connection Screw terminals up to 13 mm² Battery temperature sensor: Yes Programmable relay: Yes, 230 V/4 A AC and 4 A up to 35 VDC Communication ports: VE.Bus and general purpose Parallel and 3-phase: Yes Protection class: IP20 Housing material: Aluminium Operating temperature: -40 to +65 °C Maximum altitude: 2000 m Dimensions (hxwxd): 364 x 295 x 221 mm Weight: 18 kg Safety standards: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 Automotive ECE R10-4 EAN 8719076045151 We would be happy to provide you with more information about this product. Please contact us contact join us.
