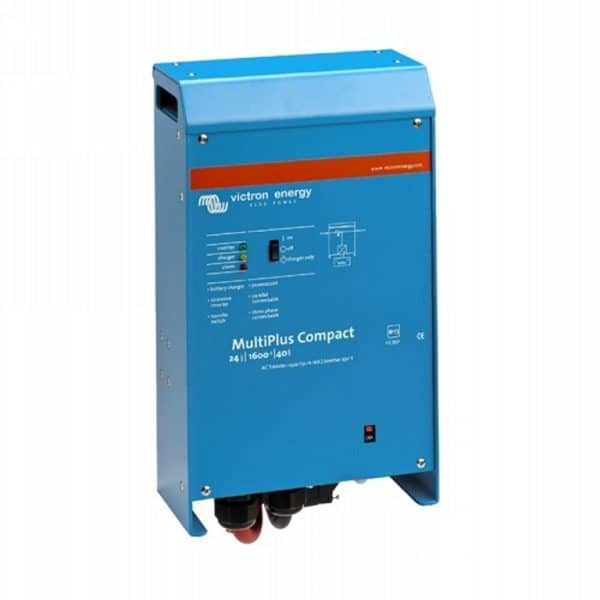

MultiPlus 24/1600/40-16 Compact MultiPlus 24/1600/40-16 Compact (article number CMP242160000) Applications For installations where space is scarce but demands are not: yachts, motorhomes, and mobile workshops. Thanks to the included battery cables and the metal housing, you are ready quickly, and computers and measuring equipment continue to operate normally in the event of a power outage. Inverter and charger in one housing Pure sine wave inverter of 1600VA / 1300W with 3000W peak power, adaptive 40A battery charger, and a high-speed AC transfer switch in a steel/aluminum housing (IP21). The full-bridge plus toroidal transformer topology is short-circuit proof and protected against overheating. UPS function In the event of a power outage or loss of shore or generator power, the inverter takes over the load within 20 milliseconds, ensuring that computers and other electronics continue to function uninterrupted. PowerControl and PowerAssist Set a maximum generator or shore power per connection; charging occurs exclusively with the remaining power. During peak load, the battery bank immediately supplements the insufficient source. Parallel and Three-Phase Up to six units in parallel for increased power. Three identical units can be configured for three-phase output; up to six sets of three can be connected in parallel. Search Mode and AES Search Mode reduces idle consumption by approximately 70% by switching off at no or low load and testing every two seconds. AES reduces idle and low load consumption by approximately 20% by narrowing the sinusoidal voltage; AES is only applicable in a stand-alone configuration. Programmable Relay Set as an alarm relay by default: the relay is de-energized upon an alarm or pre-alarm (inverter nearly too hot, input ripple voltage nearly too high, battery voltage nearly too low). Solar Energy and Grid Connection Applicable in autonomous and grid-connected PV systems. Software for detecting grid losses is available. Monitoring and configuration You change stand-alone settings using DIP switches. You configure parallel and three-phase applications with VE.Bus Quick Configure and VE.Bus System Configurator. You monitor and operate the system locally or remotely via the free VRM app and VRM Portal – Victron Energy (https://vrm.victronenergy.com) using a GX device, VE.Bus Smart dongle, or MK3 interface, from a smartphone, tablet, laptop, or PC. Can be ordered directly with this * Cable set 35mm² 1.5 m red and black M8 (KABSET010350) – product page (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABSET010350) | category Cables > Battery (https://shop.top.systems/installatie/kabels/accu/) * Red battery cable 35mm² per meter (KABRD0103500) – product page (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABRD0103500) | category Cables > Battery (https://shop.top.systems/installatie/kabels/accu/) * Black battery cable 35mm² per meter (KABZW0103500) – product page (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABZW0103500) | category Cables > Battery (https://shop.top.systems/installatie/kabels/accu/) * Red insulation cap 35 / 50mm² (ISKP222N4V02) – product page (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP222N4V02) | category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Black insulation cap 35 / 50mm² (ISKP222N4V14) – product page (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP222N4V14) | category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * MEGA-fuse fuse holder 2xM8 (ZEKHD0000200) – product page (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ZEKHD0000200) | category Fuse holders (https://shop.top.systems/beveiligen-schakelen/zekeringhouders/) * Victron VE.Bus Smart dongle (ASS030537010) – product page (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ASS030537010) | category Wireless (https://shop.top.systems/monitoring-controle/draadloos/) * Victron SmartShunt 500A/50mV (SHU050150050) – product page (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=SHU050150050) | category Battery monitors (https://shop.top.systems/monitoring-controle/accumonitors/) * Victron Cerbo GX MK2 (BPP900450110) – product page (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BPP900450110) | category Control panels (https://shop.top.systems/monitoring-controle/bedieningspanelen/) * Victron Ekrano GX (BPP900480100) – product page (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BPP900480100) | category Control panels (https://shop.top.systems/monitoring-controle/bedieningspanelen/) * TS Enovations Insulation Monitor IMD3 (SHP302501450-C) – product page (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=SHP302501450-C) | Category Insulation monitors (https://shop.top.systems/beveiligen-schakelen/isolatiebewakers/) Related products * MultiPlus 24/1200/25-16 Compact (CMP242120000) – view product (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=CMP242120000) Documentation * Manual MultiPlus C 24/1600/40-16 230V VE.Bus (PDF) (https://shop.top.systems/_clientfiles/Documents/Manuals/CMP241620000_Victron-MultiPlus-C-24-1600-40-16-230V-Ve-Bus.pdf) * Datasheet MultiPlus C 24/1600/40-16 (PDF) (https://shop.top.systems/_clientfiles/Documents/Datasheets/CMP241620000.pdf) * Victron Energy datasheet MultiPlus 800VA – 5kVA, English (PDF) (https://www.victronenergy.com/upload/documents/Datasheet-MultiPlus-inverter-charger-800VA-5kVA-EN-.pdf) Contact Would you like to know if this model is suitable for your battery capacity and shore connection? Our specialists can assist with sizing, protection, and monitoring. Please contact Top Systems (https://www.top.systems/nl/contact/). Specifications Output power 1600VA / 1300W Peak power 3000W Battery voltage 24VDC Input voltage AC 230VAC Output voltage 230VAC House battery charging current 40A Starter battery charging current 4A Transfer switch 16A Maximum transfer current 16A PowerControl / PowerAssist Yes / yes AC inputs / AC outputs 1 / 1 Recommended battery capacity 200 – 400 Ah Recommended DC fuse 40A Battery cables Included, 25mm² Communication VE.Bus Protection class IP21 Brand Victron Energy EAN 8719076065104 We would be happy to provide you with more information about this product. Please contact us contact join us.
