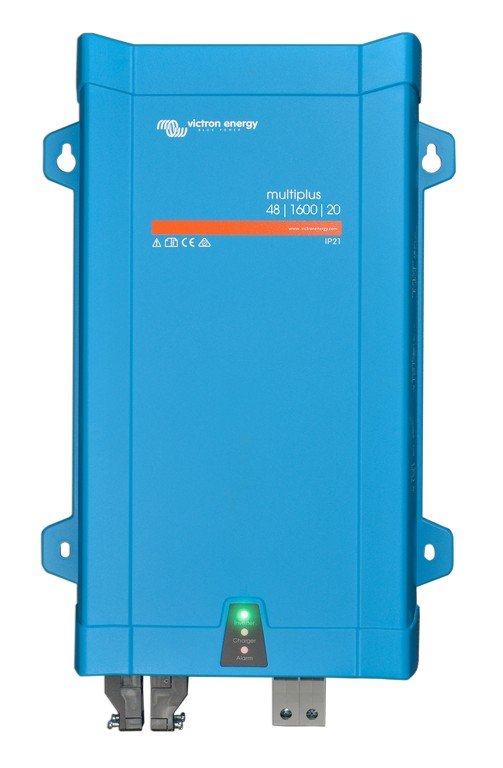

MultiPlus 48/1600/20-16 Applications For compact 48V installations where inversion, charging, and pass-through must fit into a single device: smaller off-grid and emergency power systems, mobile units, and onboard networks. The successor to the earlier Compact series, with the same PowerAssist functionality. Sine wave inverter, battery charger, and automatic transfer switch Pure sine wave inverter, advanced battery charger with adaptive charging technology, and a fast AC transfer switch in a single elongated housing. The high starting power handles inrush currents from, for example, LED drivers, halogen lighting, and power tools. Proven reliability The full-bridge plus toroidal transformer topology has proven itself for years in professional installations. The inverter is short-circuit resistant and protected against overheating due to overload or high ambient temperature. Uninterrupted AC power In the event of a grid failure or the loss of shore or generator power, the inverter takes over the connected loads within 20 milliseconds, ensuring that computers and other electronics continue to operate. PowerControl and PowerAssist A maximum shore or generator current is set using the control panel. The MultiPlus charges only with the power remaining after the other AC loads. PowerAssist supplements short-term peaks with power from the battery bank and recharges it as soon as the load decreases. Parallel and three-phase Up to six units in parallel for higher output power; three identical units can be configured for three-phase output. Adaptive battery charger Four-step adaptive charging characteristic with absorption 57.6 V, trickle 55.2 V, and storage mode 52.8 V. The battery charging current is 20 A down to an ambient temperature of 25 °C. The battery temperature sensor is included, but the 16mm² battery cables are not. The unit has an internal 60 A DC fuse. Search mode With search mode enabled, no-load consumption drops by approximately 70%. The inverter switches off at no or very low load and briefly switches on every two seconds; If the output current exceeds the set level, it continues to run. Configuration and monitoring Battery recharge voltage and search mode can be set using DIP switches; VEConfigure or the VE.Bus Smart dongle is used for the remaining settings. In combination with a GX device, the system can be monitored and operated locally and remotely via the VRM Portal – Victron Energy (https://vrm.victronenergy.com/landingpage) and the VRM app. By default, the programmable relay switches upon an alarm or pre-alarm, such as a near-high temperature, excessive input ripple, or a near-low battery voltage. Can be ordered directly with this * Red battery cable 16mm² per meter (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABRD0101600) – item number KABRD0101600, category Battery cables (https://shop.top.systems/installatie/kabels/accu/) * Black battery cable 16mm² per meter (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABZW0101600) – item number KABZW0101600, category Battery cables (https://shop.top.systems/installatie/kabels/accu/) * Crimp cable lug 16mm² > M8 (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=PSKABOG00017) – item number PSKABOG00017, category Crimp cable lugs (https://shop.top.systems/installatie/accessoires-kabels/perskabelogen/) * Red insulation cap 16mm² (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP218N4V02) – item number ISKP218N4V02, category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Black insulation cap 16mm² (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP218N4V14) – item number ISKP218N4V14, category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Red heat shrink tubing 50cm for 16/25mm battery cable (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KRKR00112764) – item number KRKR00112764, category Heat shrink tubing (https://shop.top.systems/installatie/accessoires-kabels/krimpkousen/) * Black heat shrink tubing 50cm for 16/25mm battery cable (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KRKZ00112764) – item number KRKZ00112764, category Heat shrink tubing (https://shop.top.systems/installatie/accessoires-kabels/krimpkousen/) * Fuse 60A MIDI (58V) (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ZEK001004060) – item number ZEK001004060, category Fuses (https://shop.top.systems/beveiligen-schakelen/zekeringen/) * MEGA-fuse fuse holder 2x M8 (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ZEKHD0000200) – item number ZEKHD0000200, category Fuse holders (https://shop.top.systems/beveiligen-schakelen/zekeringhouders/) * Victron Digital Multi Control 200/200A (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=REC020005010) – item number REC020005010, category Control Panels (https://shop.top.systems/monitoring-controle/bedieningspanelen/) * Victron Digital Multi Control 200/200A GX (90º) (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=DMC000200010R) – item number DMC000200010R, category Control Panels (https://shop.top.systems/monitoring-controle/bedieningspanelen/) * Victron Battery Monitor BMV-712 Smart (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BAM030712000R) – item number BAM030712000R, category Battery monitors (https://shop.top.systems/monitoring-controle/accumonitors/) * Victron Battery monitor BMV-702 (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BAM010702000R) – item number BAM010702000R, category Battery monitors (https://shop.top.systems/monitoring-controle/accumonitors/) * Victron Battery monitor BMV-702 Black (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BAM010702200R) – item number BAM010702200R, category Battery monitors (https://shop.top.systems/monitoring-controle/accumonitors/) * Victron battery monitor BMV-700 (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BAM010700000R) – item number BAM010700000R, category Battery monitors (https://shop.top.systems/monitoring-controle/accumonitors/) * Victron VE.Bus Smart dongle (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ASS030537010) – item number ASS030537010 * Victron Cerbo GX MK2 (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BPP900450110) – item number BPP900450110 * TS Enovations Insulation Monitor IMD3 (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=SHP302501450-C) – item number SHP302501450-C, category Insulation Monitors (https://shop.top.systems/beveiligen-schakelen/isolatiebewakers/) Related products * MultiPlus 48/1200/13-16 (https://shop.top.systems/omvormen-laden/omvormen-laden-combi/multiplus-48-1200-13-16.html) – item number PMP482120000, the lighter version from the same IP21 series Documentation * Datasheet MultiPlus inverter/charger 500 VA – 2000 VA (NL) (https://www.victronenergy.com/upload/documents/Datasheet-MultiPlus-500VA-2000VA-NL.pdf) * Datasheet MultiPlus Inverter/Charger 500VA – 2000VA (EN) (https://www.victronenergy.com/upload/documents/Datasheet-MultiPlus-500VA-2000VA-EN.pdf) * Manual MultiPlus 1600VA (multilingual, with NL) (https://www.victronenergy.com/upload/documents/Manual-MultiPlus-1600VA-EN-NL-FR-DE-ES-IT.pdf) * Dimensions MultiPlus 12V 24V 48V 1600VA (EN) (https://www.victronenergy.com/upload/documents/MultiPlus-12V-24V-48V-1600VA.PDF) * Declaration of Conformity MultiPlus 500 VA – 2000 VA (EN) (https://www.victronenergy.com/upload/documents/MultiPlus-500VA-2000VA-2022-07-04.pdf) * ISO 9001 Certificate Victron Energy (NL) (https://www.victronenergy.com/upload/documents/ISO9001-certificate-2024-NL.pdf) Videos * Did You Know – MultiPlus firmware updating with an Android smartphone (EN) (https://youtu.be/AEPmjkyg7UY) Contact Curious if 1600 VA is sufficient for your loads, or how this device works with your battery bank and solar chargers? Our specialists are happy to help. Contact Top Systems (https://www.top.systems/nl/contact/). Specifications Continuous output power at 25 °C 1600 VA / 1300 W Continuous output power at 40 °C 1100 W Continuous output power at 65 °C 800 W Peak power 2800 W Battery charging current 20 A Automatic transfer switch 16 A DC input voltage range 38 – 66 V Output voltage 230 VAC ± 2 %, 50 Hz ± 0.1 % AC input voltage range 187 – 265 VAC, 45 – 65 Hz Acceptance charging voltage 57.6 V Trickle charging voltage 55.2 V Storage mode 52.8 V No-load power 10 W No-load power search mode 3 W Internal DC fuse 60 A Number of AC outputs 1 Battery temperature sensor included Programmable relay 230 V / 4 A AC, 4 A up to 35 VDC, 1 A up to 60 VDC DIP switches battery recharge voltage and Search mode Communicative VE.Bus Operating temperature -40 to +65 °C, fan cooling Humidity max. 95 %, non-condensing Protection category IP21 Material steel/ABS Battery connection 16 mm² 230 VAC connection G-ST18i connector Dimensions (hxwxd) 470 x 265 x 120 mm Weight 10.2 kg EAN 8719076046813 Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1 Road vehicles ECE R10-5 Warranty 5 years We would be happy to provide you with more information about this product. Please contact contact join us.
