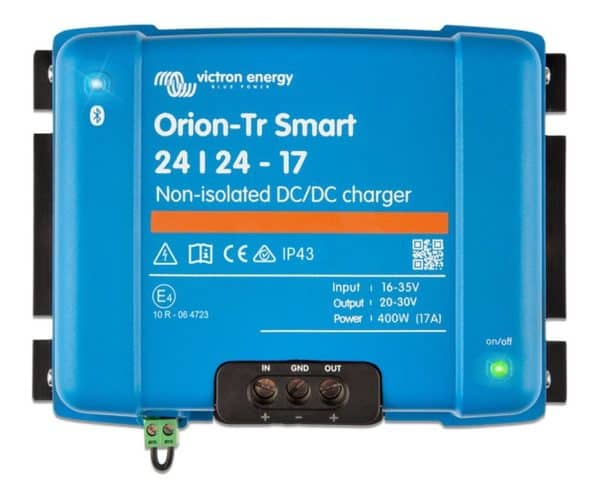

Orion-Tr Smart 24/24-17A non-isolated DC-DC charger

Orion-Tr Smart 24/24-17A non-isolated DC-DC charger

Orion-Tr Smart 24/24-17A Non-Isolated DC-DC Charger The Victron Orion-Tr Smart 12/24-15A (360W) non-isolated DC-DC battery charger is specifically designed for use in systems with an ECO (smart) alternator (Euro 5 / Euro 6). The outputs of this model are non-isolated, meaning the negative (-) is connected to the central ground or the chassis. This professional three-stage DC-to-DC battery charger ensures that the auxiliary battery in vehicles or boats can be charged effectively despite fluctuating alternator voltage. The Orion-Tr Smart can be monitored and programmed via Bluetooth, and operated remotely via an external on/off switch. Furthermore, the device is equipped with an engine operation detection mechanism. Bluetooth Smart enabled: Any smartphone, tablet, or other Bluetooth-equipped device can be used to check and change settings and to update the battery charger when new software features become available. Fully programmable > Battery charging algorithm (configurable) or fixed output. Smart alternator compatibility: running engine detection mechanism. Adaptive 3-phase charging algorithm: bulk – absorption – float. For lead-acid batteries, it is important to keep the absorption time short during shallow discharges to prevent battery overload. After a deep discharge, the absorption time is automatically increased to ensure the battery is fully recharged. For lithium batteries, the absorption time is fixed, standard 2 hours. Alternatively, a fixed output voltage can be selected. Remote on/off function. A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery positive, or the L terminal (left) of the two-pole connector can be switched to battery negative (or, for example, the chassis of a vehicle). Parallel connection. All models are short-circuit-free and can be lined up to increase the output current. An unlimited number of units can be connected in a single line. High temperature protected. The output current will decrease at high ambient temperatures. IP43 protection. When installed with the screw terminals oriented downwards. Screw terminals. No special tools required for installation. Input fuse (non-replaceable). Only on 12V and 24V models. We would be happy to provide you with more information about this product. Please contact us contact join us.
