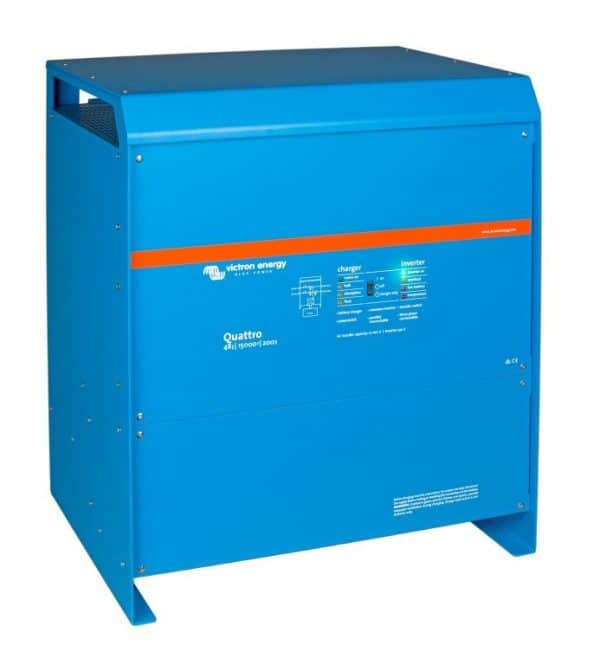

Quattro 48/15000/200-100/100 277V
Quattro 48/15000/200-100/100 277V Applications The 277 V / 60 Hz version for projects outside the European grid: industrial and telecom power supplies, split-phase installations, and large off-grid systems. Two AC inputs enable the combination of grid and generator, or two generators, without an external control cabinet. Two AC inputs with integrated automatic changeover switch Can be connected to two independent AC sources, for example, the grid and a generator or two generators. The device automatically switches to the active source. The throughput current is 2x 100 A. PowerControl and PowerAssist A current limit can be set per AC input. Other AC loads are taken into account, and only the remaining current goes to the battery charger so that the source does not become overloaded. In the event of short-term peaks, the battery bank immediately replenishes the deficit; as soon as the load drops, the surplus is used for charging. Two AC outputs. The main output operates uninterrupted and takes over within 20 milliseconds in the event of a loss of mains or generator power. The 50 A auxiliary output is energized only as long as AC voltage is present on one of the inputs; intended for loads that must not discharge the battery bank. Power 15000 VA and 12000 W continuous at 25 °C, 10000 W at 40 °C and 7000 W at 65 °C, with a peak power of 25000 W. The output voltage is adjustable from 230 to 280 V; below 275 V, the continuous output power decreases linearly with the output voltage. Battery charger. Adaptive charging with absorption 57.6 V, trickle charging 55.2 V, and storage mode 52.8 V, with a charging current of up to 200 A at an ambient temperature of up to 25 °C. The battery temperature sensor is included. The charging algorithm can be adapted using VEConfigure for lead-acid, AGM, gel, and lithium, among others. 3-phase operation and parallel connection: Three units form a 3-phase system; up to four of these sets can be connected in parallel, providing 144 kW / 180 kVA inverter power and 2400 A charging capacity. Low self-consumption: No-load power 110 W, 75 W in AES mode, and 20 W in search mode. Three programmable relays: Default configured as alarm relays and configurable for pre-alarm, DC undervoltage, or generator start/stop, among others. Load capacity: 230 V / 4 A AC, 4 A up to 35 V DC, and 1 A up to 60 V DC. Configuration, monitoring, and control: Setup using VEConfigure via the MK3 USB interface or with the VictronConnect app; for stand-alone applications, a DIP switch procedure suffices. For monitoring, a battery monitor, a Digital Multi Control panel, a Cerbo GX or Ekrano GX communication center, and the VE.Bus Smart dongle are available, among others. The system can be monitored and adjusted remotely via a GX device with an internet connection in the VRM Portal – Victron Energy (https://vrm.victronenergy.com). Can be ordered directly with this * Red battery cable 70mm² per meter, KABRD0107000 – go to the article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABRD0107000) | category Battery cables (https://shop.top.systems/installatie/kabels/accu/) * Battery cable black 70mm² per meter, KABZW0107000 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABZW0107000) | category Battery cables (https://shop.top.systems/installatie/kabels/accu/) * Crimp cable lug 70mm² > M8, PSKABOG00071 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=PSKABOG00071) | category Crimp cable lugs (https://shop.top.systems/installatie/accessoires-kabels/perskabelogen/) * Insulation cap 35/50/70mm² double red, ISKP600N4 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP600N4) | category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Insulation cap 35/50/70mm² double black, ISKP600N41 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP600N41) | category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Red heat shrink tubing 50cm for 35/50/70mm battery cable, KRKR01191955 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KRKR01191955) | category Heat shrink tubing (https://shop.top.systems/installatie/accessoires-kabels/krimpkousen/) * Black heat shrink tubing 50cm for 35/50/70mm battery cable, KRKZ01191955 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KRKZ01191955) | category Heat shrink tubing (https://shop.top.systems/installatie/accessoires-kabels/krimpkousen/) * Mega fuse holder M8 35-500A, ZEKHD0000805 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ZEKHD0000805) | category Fuse holders (https://shop.top.systems/beveiligen-schakelen/zekeringhouders/) * Victron Digital Multi Control 200/200A, REC020005010 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=REC020005010) | category Control panels (https://shop.top.systems/monitoring-controle/bedieningspanelen/) * Victron SmartShunt 500A/50mV, SHU050150050 – to the article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=SHU050150050) | category Battery monitors (https://shop.top.systems/monitoring-controle/accumonitors/) * Victron Cerbo GX MK2, BPP900450110 – to the article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BPP900450110) * Victron VE.Bus Smart dongle, ASS030537010 – to the article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ASS030537010) Related products * Quattro 48/5000/70-100/100, QUA485021010 – to the article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=QUA485021010) * Quattro-II 48/5000/70-50/50, QUA482504010 – to the article (https://shop.top.systems/omvormen-laden/omvormen-laden-combi/quattro-ii-48-5000-70-50-50.html) Documentation * Datasheet Quattro Inverter/Charger 277V 15 kVA (EN) (https://www.victronenergy.com/upload/documents/Datasheet-Quattro-15kVA-277V-EN.pdf) * Manual Quattro 48/15000/200-100/100 277V (EN) (https://www.victronenergy.com/upload/documents/Manual-Quattro-15K-277V-EN.pdf) * Dimensions Quattro 48V 15000VA 230V/277V (https://www.victronenergy.com/upload/documents/Quattro-48V-15000VA-230V-277V.pdf) * ISO 9001 certificate (NL) (https://www.victronenergy.com/upload/documents/ISO9001-certificate-2024-NL.pdf) Contact Are you working on a 60 Hz or split-phase installation and do you want to be sure that voltage, fuse, and battery bank match? Our engineers will calculate your project. Contact us (https://www.top.systems/nl/contact/). Specifications Nominal battery voltage 48 V Continuous output power at 25 °C 15000 VA / 12000 W Continuous output power at 40 °C 10000 W Continuous output power at 65 °C 7000 W Peak power 25000 W Output voltage 277 V AC ± 2 %, 60 Hz ± 0.1 %, adjustable 230 – 280 V Maximum battery charging current 200 A Number of AC inputs 2, with integrated automatic transfer switch Maximum throughput current 2x 100 A AC input voltage range 240 – 295 V AC, 45 – 65 Hz Number of AC outputs 2 Auxiliary output 50 A Input voltage range DC 38 – 66 V Charging voltage absorption / trickle / storage 57.6 / 55.2 / 52.8 V Maximum efficiency 96 % No-load power 110 W No-load power AES mode 75 W No-load power search mode 20 W Battery temperature sensor Included Programmable relays 3x, 230 V / 4 A AC; 4 A up to 35 V DC, 1 A up to 60 V DC Communication VE.Bus, 2x general communication ports, remote on/off Operating temperature -40 to +65 °C Maximum humidity 95 %, non-condensing Housing material Aluminium Protection class IP21 Battery connection Four M8 bolts, 2 plus and 2 minus 277 V AC connection M6 bolts Dimensions (hxwxd) 572 x 488 x 344 mm Weight 72 kg Safety standards EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1 We would be happy to provide you with more information about this product. Please contact us
