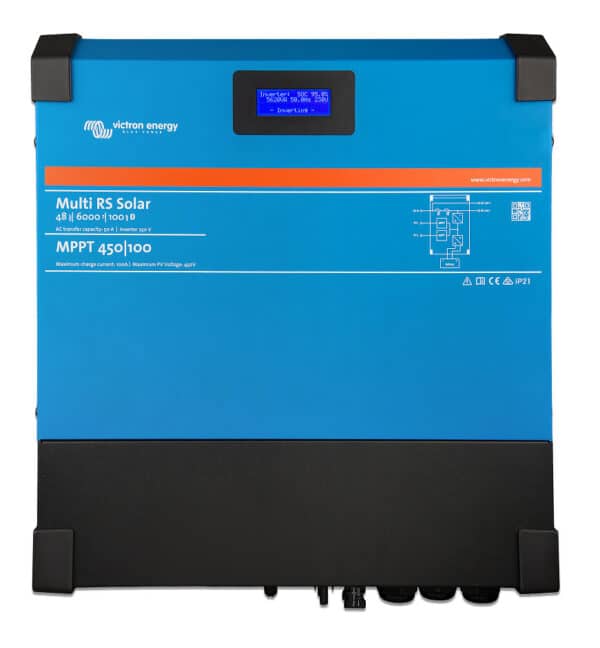

Victron Multi RS Solar 48/6000/100-450/100
Victron Multi RS Solar 48/6000/100-450/100 Applications For hybrid and self-sufficient installations where the inverter, battery charger, and solar charger must be integrated into a single unit. High-frequency technology delivers 6 kVA from over twelve kilograms, with high efficiency, low standby consumption, and very quiet operation. Two independent MPPT trackers Two trackers of 3 kWp each, totaling 6 kWp PV capacity, with an MPPT operating voltage range of 65 to 450 V and a maximum open-circuit voltage of 450 V. Each array has its own positive and negative MC4 terminal. The maximum PV voltage must not exceed eight times the trickle charge voltage of the battery bank. Operating modes * Hybrid mode: stores excess PV energy in the battery bank for nighttime use or peak moments. * Backup mode: switches over in the event of a grid power interruption. * Self-sufficient mode: operates without a grid connection. * Generator mode: minimizes operating hours and supplements deficits from the battery bank. * PV inverter mode: operates as a PV inverter without a battery bank, so that storage can be added later. PowerControl and PowerAssist Set the maximum grid or generator current; charging is performed only with what remains, so that the source does not become overloaded. In the event of short-term peaks, the battery bank immediately supplements the deficit, and the excess power is then used again for charging. Power The continuous output power at 25 °C increases linearly from 4600 W at 46 V DC to 5200 W at 52 V DC, with 4500 W at 40 °C and 3000 W at 65 °C. Peak power 9 kW for 3 seconds and 7 kW for 4 minutes. Efficiency 96.5% at 1 kW load and 94% at 5 kW. Two AC outputs AC-out-1 operates uninterrupted. AC-out-2 is directly connected to the AC input and intended for non-critical loads; this load is taken into account by PowerControl and PowerAssist. Battery charger Adjustable charging voltage range from 36 to 60 V, standard absorption 57.6 V and trickle charge 55.2 V. Maximum 88 A from AC at 57.6 V DC and 100 A DC combined from AC and PV together. Battery temperature sensor included, battery voltage sensor present. Empty battery shutdown at 37.2 V and restart at 43.6 V, both adjustable. Expandable PV capacity The built-in 6 kWp can be expanded with separate PV chargers on the DC side or with AC-coupled PV inverters, whose output power is automatically regulated via the integrated frequency shift. Display, Bluetooth and VictronConnect The built-in display shows battery, inverter, and PV parameters. The same values can be retrieved via Bluetooth using a smartphone or tablet in the VictronConnect app, which is also used to change settings and update firmware. Communication and I/O: VE.Can for connection to a GX communication center, energy meter, data logging, and remote firmware updates; VE.Direct for a GlobalLink 520. Furthermore, two programmable analog/digital ports, a programmable relay, connections for temperature and voltage sensors, and a remote on/off input. The system can be monitored via a GX device in the VRM Portal – Victron Energy (https://vrm.victronenergy.com). 3-phase operation: 3-phase operation is supported with one unit per phase. Parallel connection is not possible. Grounding exclusively in TN and TT systems. Can be ordered directly * Red battery cable 70mm² per meter, KABRD0107000 – go to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABRD0107000) | category Battery cables (https://shop.top.systems/installatie/kabels/accu/) * Black battery cable 70mm² per meter, KABZW0107000 – go to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KABZW0107000) | category Battery cables (https://shop.top.systems/installatie/kabels/accu/) * Crimp cable lug 70mm² > M8, PSKABOG00071 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=PSKABOG00071) | category Crimp cable lugs (https://shop.top.systems/installatie/accessoires-kabels/perskabelogen/) * Insulation cap 35/50/70mm² double red, ISKP600N4 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP600N4) | category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Insulation cap 35/50/70mm² double black, ISKP600N41 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ISKP600N41) | category Insulation caps (https://shop.top.systems/installatie/accessoires-kabels/isolatiekappen/) * Heat shrink tubing red 50cm for 35/50/70mm battery cable, KRKR01191955 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KRKR01191955) | category Heat Shrink Tubing (https://shop.top.systems/installatie/accessoires-kabels/krimpkousen/) * Black heat shrink tubing 50cm for 35/50/70mm battery cable, KRKZ01191955 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=KRKZ01191955) | category Heat Shrink Tubing (https://shop.top.systems/installatie/accessoires-kabels/krimpkousen/) * Mega fuse holder M8 35-300A, ZEKHD0000800 – to the item (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ZEKHD0000800) | category Fuse holders (https://shop.top.systems/beveiligen-schakelen/zekeringhouders/) * LittelFuse fuse 200A MEGA 70V-SF51, ZEKLFM070200 – to the article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=ZEKLFM070200) | category Fuses (https://shop.top.systems/beveiligen-schakelen/zekeringen/) * Victron SmartShunt 500A/50mV, SHU050150050 – to the article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=SHU050150050) | category Battery monitors (https://shop.top.systems/monitoring-controle/accumonitors/) * Victron Cerbo GX MK2, BPP900450110 – to the article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BPP900450110) * Cerbo GX Touch 50, BPP900455050 – to the article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BPP900455050) * Victron Ekrano GX, BPP900480100 – to the article (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=16&artdetail=BPP900480100) Related products * MultiPlus-II 48/5000/70-50-GX, PMP482506000 – to the article (https://shop.top.systems/omvormen-laden/omvormen-laden-combi/multiplus-ii-48-5000-70-50-gx.html) * MultiPlus-II 48/4500/55-32 230 Volt GX, PMP482406000 – to the article (https://shop.top.systems/omvormen-laden/omvormen-laden-combi/multiplus-ii-48-4500-55-32-230-volt-gx.html) Documentation * Datasheet Multi RS Solar 48/6000/100 (NL) (https://www.victronenergy.com/upload/documents/Datasheet-Multi-RS-Solar-NL.pdf) * Datasheet Multi RS Solar 48/6000/100 Hybrid Inverter (EN) (https://www.victronenergy.com/upload/documents/Datasheet-Multi-RS-Solar-EN.pdf) * ISO 9001 certificate (NL) (https://www.victronenergy.com/upload/documents/ISO9001-certificate-2024-NL.pdf) Contact Do you want to optimally configure the two PV trackers or ensure that your string voltage remains within the range? Our product specialists will calculate your installation. Contact us (https://www.top.systems/nl/contact/). Specifications Nominal battery voltage 48 V Continuous output power at 25 °C 4600 W at 46 V DC increasing to 5200 W at 52 V DC Continuous output power at 40 °C 4500 W Continuous output power at 65 °C 3000 W Peak power 9 kW for 3 seconds, 7 kW for 4 minutes Maximum PV conversion power 6 kW total, 3 kW per tracker MPPT operating voltage range 65 – 450 V Maximum PV open-circuit voltage 450 V PV startup voltage 120 V Maximum PV input current 12 A Maximum PV short-circuit current 16 A Total maximum charging current (AC + PV) 100 A DC Maximum charging current from AC 88 A at 57.6 V DC Automatic transfer switch 50 A Maximum AC input and through-flow current 50 A Input voltage range DC 38 – 62 V, minimum startup voltage 41 V Output voltage 230 V AC ± 2 %, 50 Hz ± 0.1 % Maximum continuous inverter current 25 A AC Efficiency 96.5 % at 1 kW, 94 % at 5 kW No-load power 20 W AC input voltage range 187 – 265 V AC, 45 – 65 Hz Charging voltage absorption / trickle 57.6 / 55.2 V, adjustable Programmable charging voltage range 36 – 60 V Dry battery shutdown / restart 37.2 V / 43.6 V, adjustable Short-circuit output current 45 A Overcurrent protection AC output 30 A Ground fault trip level 30 mA Auxiliary output AC-out-2 Yes Battery temperature sensor Included Battery voltage sensor Yes Data communication ports VE.Direct, VE.Can and Bluetooth Programmable input/output ports Yes, 2x Programmable relay Yes, 4 A up to 35 V DC and 1 A up to 70 V DC Remote on/off Yes 3-phase operation Yes, one unit per phase; parallel connection not supported Operating temperature -40 to +65 °C, fan-assisted cooling Maximum humidity 95 %, non-condensing Maximum altitude 2000 m Grounding system TN and TT only Housing material Steel Protection degree IP21, protection class I Battery connection M8 bolts PV connection 2 series, each with positive and negative MC4 230 V AC connection Screw terminals 10 mm² Dimensions (hxwxd) 462 x 425 x 127 mm Weight 12.3 kg Safety standards EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2, IEC 62040, IEC 62477 We would be happy to provide you with more information about this product. Please contact us
