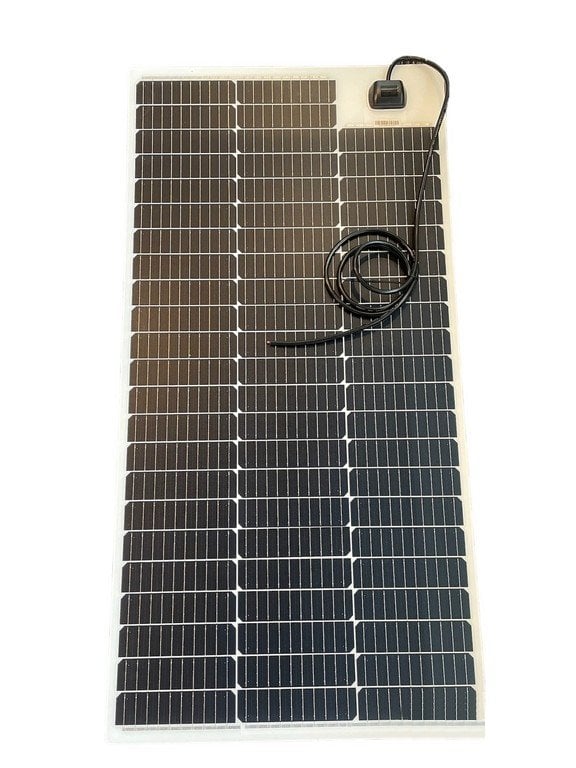

Semi-flexible solar panel 120Wp junction box incl. cable

Semi-flexible solar panel 120Wp junction box incl. cable

Semi-flexible solar panel 120Wp junction box incl. cable

For those seeking a black, flat panel that is barely noticeable on a camper, bus, or boat roof and adds hardly any weight. With a thickness of 4 mm and an aluminum underlay, suitable for flat and slightly curved roofs, featuring a junction box for a neat connection. Black laminate with aluminum underlay. The aluminum base plate makes the panel dimensionally stable and heat-resistant and dissipates cell heat to the support surface. The black finish extends into the cells, causing the panel to virtually disappear on a dark roof. 120 Wp from 182 mm A-grade cells. 66 monocrystalline 182 mm A-grade cells (2 x 23 + 21) with a cell efficiency of 22.7% deliver 120 Wp at a Vmp of 38.2 V. The ETFE top layer has high light transmission, is scratch-resistant, and does not yellow. D-junction box with 90 cm cable The panel comes factory-equipped with a D-junction box, wired with 2x 2.5 mm² cable of 90 cm length. Using a Staubli MC4 connector set, you create a watertight, pluggable connection to the MPPT charge controller. Adhesive mounting without roof feed-through The panel is designed for adhesive mounting. Using Sika aktivator-205 and Sikaflex 552 AT, you glue the panel directly onto the roof panel; with a Solara roof feed-through, you route the cable indoors in a watertight manner. No screw holes, no risk of leakage. Can be ordered directly with this purchase * Sika Aktivator-205 transparent, 30 milliliters (https://shop.top.systems/zonnestroom/accessoires-zonnepanelen/sika-aktivator-205-transparant-inhoud-30-milliliter.html) – SOLAR0092533 * Sikaflex 552 AT construction adhesive white, 300 milliliters (https://shop.top.systems/zonnestroom/accessoires-zonnepanelen/sikaflex-552-at-constructielijm-wit-buitentoepassingen-inhoud.html) – SOLAR0092525 * Solara roof feed-through DD1/W (https://shop.top.systems/zonnestroom/accessoires-zonnepanelen/solara-dakdoorvoer-dd1-w.html) – SOLAR0095480 * Solara roof feed-through DD2/W (https://shop.top.systems/zonnestroom/accessoires-zonnepanelen/solara-dakdoorvoer-dd2-w.html) – SOLAR0095481 * Solara roof feed-through DD2/S (https://shop.top.systems/zonnestroom/accessoires-zonnepanelen/solara-dakdoorvoer-dd2-s.html) – SOLAR0095510 * Staubli MC4 connector set (male and female) (https://shop.top.systems/zonnestroom/accessoires-zonnepanelen/staubli-mc4-connector-set-male-en-female.html) – SOLAR0095486 * Victron SmartSolar MPPT 75/15 (12/24V) (https://shop.top.systems/zonnestroom/omvormers-zonnepanelen/victron-smartsolar-mppt-75-15-12-24v.html) – SCC075015060R Related products * Semi-flexible solar panel 120Wp flush (https://shop.top.systems/zonnestroom/zonnepanelen/zonnepaneel-le-120w-36v-1120x580x4-mm.html) – SOLAR5005033 * Semi-flexible solar panel 190Wp (https://shop.top.systems/zonnestroom/zonnepanelen/zonnepaneel-le-190-34-5v-021d-1490x673x4-mm.html) – SOLAR5005031 * SGM-115W rigid solar panel (https://shop.top.systems/zonnestroom/zonnepanelen/zonnepaneel-sgm-115w-rigid-1195x545x35-mm.html) – SOLAR5005037 Documentation * Datasheet LE-M2-120W (English) (https://shop.top.systems/_clientfiles/Documents/Datasheets/SOLAR5005039.pdf) Contact Are you unsure whether to choose the version with a junction box or the flush variant, or do you want to know which MPPT charge controller suits your battery bank? Our technical advisors are happy to help. Please contact us (https://www.top.systems/nl/contact/). Specifications Peak power (Pmax) 120 Wp Voltage at max. power (Vmp) 38.2 V Current at max. power (Imp) 3.15 A Open circuit voltage (Voc) 44.7 V Short-circuit current (Isc) 3.30 A Power tolerance ±3 % Max. System voltage 200 Vdc (IEC) Cell type Monocrystalline A-grade, 182 mm Number of cells 66 (2 x 23 + 21) Cell efficiency 22.7 % Power temperature coefficient -0.35 %/°C Voltage temperature coefficient -0.275 %/°C Connection D-junction box, cable 2x 2.5 mm², 90 cm Operating temperature -20 to +75 °C Protection class IP67 Dimensions (LxWxH) 1140 x 580 x 4 mm Color Black Certification CE, RoHS Warranty 1 year
