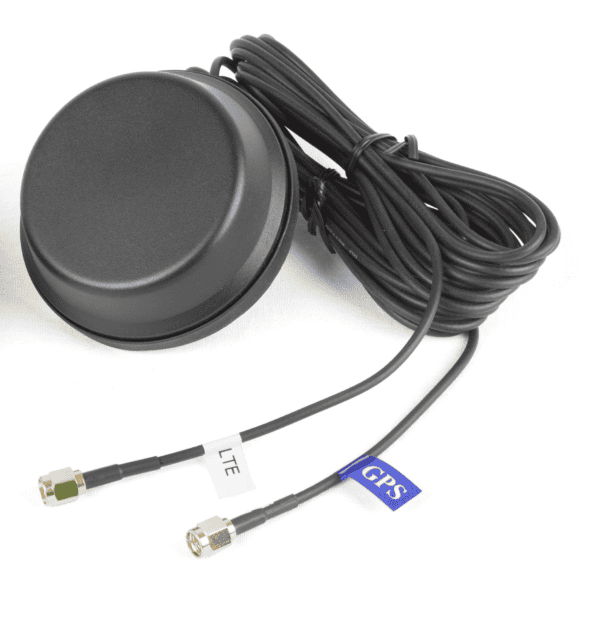

Stigwize 2-in-1 Puck Antenna 4G GPS Combination antenna with a 4G and a GPS element in one flat, vandal-resistant housing. Two separate coaxial cables with SMA male straight connectors, so that the modem and GPS input each get their own connection. Through-feed mounting with gland nut enables a sleek and watertight finish. Applications Two antennas mean drilling two holes, sealing two feed-throughs, and twice the risk of leakage or vandalism. This puck replaces that with a single feed-through that transmits 4G and GPS simultaneously — and which, thanks to its flat, robust design, is hardly noticeable and cannot be easily broken off. Exactly what you want on publicly accessible installations, vehicles, and boats. * Vehicles, campers, and professional superstructures with tracking * Boats: roof feed-through for mobile internet and positioning * Publicly accessible installations where vandalism is a real risk * Measurement and pump cabinets in rural areas * Rental equipment that must be both online and traceable Two antennas, one feed-through * 4G element with SMA male straight connector * GPS element with SMA male straight connector * Both cables RG174, 3 m * Impedance 50 Ω Mounting * Feed-through mounting with union nut; hole to be drilled 17 mm * Flat, robust design without protruding parts * Operating temperature -40 to +85 °C Power supply of the GPS element The GPS element is active and is powered from the connected device: 2.3 to 5.5 VDC, maximum current consumption approximately 16.6 mA. Check whether the GPS input of your modem or router supplies this power voltage. Can be ordered directly with this * Victron GX LTE 4G-E (https://shop.top.systems/monitoring-controle/draadloos/victron-gx-gsm-4g-internet-dongle.html) (GSM100100400) — modem with an SMA connector for both LTE and GPS. Category Wireless (https://shop.top.systems/monitoring-controle/draadloos/). * Teltonika RUT951 4G LTE Router (https://shop.top.systems/monitoring-controle/draadloos/teltonika-rut951-4g-lte-router.html) (INTD01000130) — router with external 4G antenna connectors. Category Wireless (https://shop.top.systems/monitoring-controle/draadloos/). Related products * Victron Outdoor 4G GSM Antenna (https://shop.top.systems/monitoring-controle/draadloos/victron-outdoor-4g-gsm-antenne.html) (GSM900100400) — standalone outdoor 4G antenna * Victron Active GPS Antenna (https://shop.top.systems/monitoring-controle/draadloos/victron-active-gps-antenne.html) (GSM900200100) — standalone active GPS antenna with magnetic mount Documentation The manufacturer does not publish a separate manual for this item; the specifications are listed on the product page. There is no Dutch-language manufacturer's documentation available. * Product page Stigwize 2-in-1 Puck Antenna 4G|GPS (EN) (https://www.capestone.com/en/product/stigwize-2-in-1-puck-antenna-4ggps/) * Datasheet via our product page (PDF) (https://shop.top.systems/_clientfiles/Documents/Datasheets/ANT010200004_Stigwize-2-in-1-Puck-antenna-4G-GPS.pdf) Contact Not sure if this antenna fits your modem or router, or are you looking for a version with more connections? Our specialists will advise you on the right combination. Contact us (https://www.top.systems/nl/contact/). Specifications Type: Combination outdoor antenna 4G and GPS in a single housing Connectors: 2x SMA male straight Cable type and length: 2x RG174, 3 m Impedance: 50 Ω Power supply GPS element: 2.3 – 5.5 VDC, max. approx. 16.6 mA Mounting: Feed-through with gland nut, 17 mm hole Operating temperature: -40 to +85 °C Brand: Stigwize EAN: 8719689231347

We'd be happy to provide you with more information about this product. Please contact us.
