Three phase transformer 22 kVA

Three phase transformer 22 kVA

Three phase transformer 22 kVA

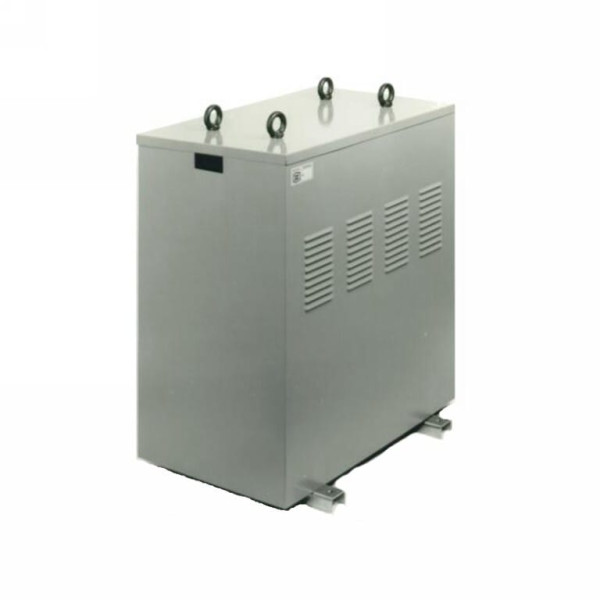

Three phase transformer with separated windings in a sheet steel housing. The housing is equipped with a sheet steel standing floor cabinet on U-profiles, IP23, sprayed in RAL 7032. The transformer has a low inrush current, approx. 5xIn Power: 22,000 VA Primary voltage: 230V Secondary voltage: 230V Frequency: Hz: 50/60 Insulation class: H Ambient temperature: 40 °C Protection degree: IP23 Dimensions (WxDxH) mm: 625 x 500 x 650 Weight: 165 kg

We'd be happy to provide you with more information about this product. Please contact us.
