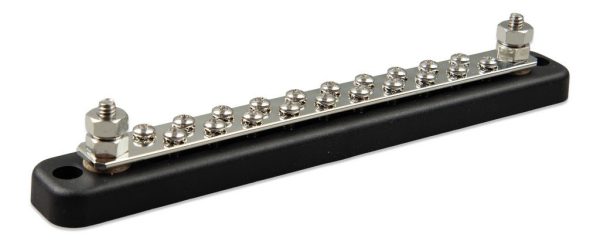

DC Distribution Busbar 150A 2P with 20 screws including ABS cover Victron Busbar 150 A 2P with 20 screw terminals At the ends of each rail, there is a heavy bolt for the main supply; between these lie twenty small screw terminals for the outgoing groups. The rail is suitable for 150 A at a maximum of 70 VDC and is supplied with a removable, transparent protective cover. Applications In a converted camper or a well-equipped boat, the number of small consumers quickly adds up. Twenty connection points for both positive and negative means that each group gets its own place, neatly side by side and immediately recognizable. This saves searching during commissioning and later during servicing. * Converted campers and expedition vehicles * Yachts with many separate 12 V groups * Central ground point for a complete DC installation * Group distribution behind a fuse panel Current distribution The rail as a whole is suitable for 150 A. Distributed over twenty connections, this amounts to approximately 7.5 A per point. This version is therefore intended for auxiliary circuits — lighting, pumps, fans, USB ports — and not for heavy loads; for those, you should choose a busbar with heavy bolt connections. Material and construction * Busbar strip of tinned copper, 2.4 x 19 mm * Bolt connections and screws of stainless steel * Nuts of tinned copper * Base of ABS, fire class UL 94 V-0 * Transparent cover of polycarbonate, fire class UL 94 HB Installation Use a tightening torque of 7 N·m for the bolt connections. The transparent cover is removable, allowing you to see which connections are occupied without disassembly and to add a circuit later. Documentation * Datasheet Busbar 150 A 2P with 10 or 20 screws (EN, PDF) (https://www.victronenergy.com/upload/documents/Datasheet-Busbar-150-A-2P-with-10-or-20-screws,-with-cover-EN.pdf) * Declaration of Conformity – busbars (PDF) (https://www.victronenergy.com/upload/documents/Bus-bar-2024-07-24.pdf) * Victron Energy ISO 9001 Certificate (PDF) (https://www.victronenergy.com/upload/documents/ISO9001-certificate-2024-EN.pdf) * Victron Energy busbars product page (EN) (https://www.victronenergy.com/dc-distribution-systems/busbars) Victron Energy does not publish a manual or Dutch-language documentation for this item; The datasheet and certificates are in English. The dimensions are listed in the datasheet. Videos * Victron Energy busbars for electrical installations – 150, 250 and 600 A (Victron Energy, EN) (https://www.youtube.com/watch?v=8Ho2syEYVpA) Contact Not sure if this version has enough connections, or how to distribute the groups along the busbar? Our specialists are happy to help. Please contact us (https://www.top.systems/nl/contact/). Available models: > 150A / 70V – 4x high-current connections > 150A / 70V – 6x high-current connections > 250A / 70V – 4x high-current connections > 600A / 70V – 4x high-current connections and 8x low-current connections > 600A / 70V – 4x high-current connections and 8x low-current connections Consult the datasheet for more technical information and for the busbar dimensions. Specifications Maximum current 150 A Maximum voltage 70 VDC Design 2-pole, plus and minus in one housing Screw connections 20 pieces, 8-32 / 4.2 mm, stainless steel Bolt connections Diameter 6.35 mm (¼ inch), height 17 mm, stainless steel Nut material Tinned copper Recommended tightening torque 7 N·m Bucket strip material Tinned copper, 2.4 x 19 mm Base material ABS, UL 94 V-0 Cap material Transparent polycarbonate, UL 94 HB Dimensions (hxwxd), with cap 45 x 232 x 32 mm Weight 1 kg Manufacturer Victron Energy Warranty 5 years We would be happy to provide you with more information about this product. Please contact us contact join us.
