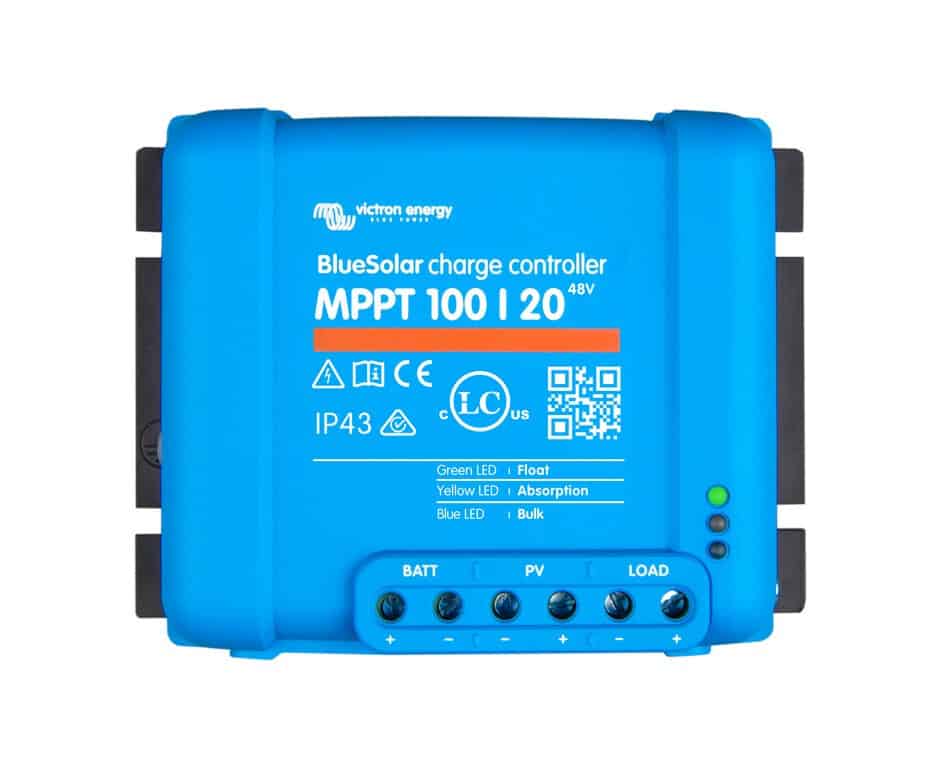

Victron BlueSolar MPPT 100/20 (12/24/48V)
Victron BlueSolar MPPT 100/20 (12/24/48V) Applications The only one in this series that also operates on 48V, with up to 1160 W panel power. For motorhomes, boats, garden sheds, and off-grid cabinets, and for 48V installations where a compact MPPT controller suffices. Operates on 12V, 24V, and 48V. Automatic voltage detection across all three system voltages. Maximum PV power 290 W at 12V, 580 W at 24V, and 1160 W at 48V, with a maximum PV open-circuit voltage of 100 V. The charging current is 20 A at all three voltages. Ultra-fast Maximum Power Point Tracking. In cloudy conditions and varying light intensity, an ultra-fast MPPT controller delivers up to 30% more energy than a PWM controller and up to 10% more than slower MPPT controllers. Maximum efficiency 98%. Programmable charging algorithm. Every morning, a new charging cycle starts according to the three-step process: bulk, absorption, and trickle. Absorption 14.4 V, 28.8 V, or 57.6 V; trickle 13.8 V, 27.6 V, or 55.2 V, all adjustable. In addition to the standard profiles, custom settings are possible. BatteryLife: If the controller cannot fully charge the battery bank every day, BatteryLife slightly increases the load cut-off level daily until the output is sufficient for a nearly full charge again. Subsequently, the level is modulated so that the battery bank reaches nearly 100% approximately weekly. Load output: Up to 20 A at 12V and 24V. Note: at 48V, the load output is limited to 1 A and serves as a control output for a relay. Configurable via VE.Direct and short-circuit protected. Internal temperature sensor. Compensates absorption and drop voltage for temperature at -16 mV/°C at 12V, -32 mV/°C at 24V, and -64 mV/°C at 48V. Street lighting function. With the Streetlight function, you control night lighting, including timing and dimming. Sunset and sunrise are the anchor points, allowing the program to automatically adjust to the seasons. VE.Direct. Wired data connection to a GX device as a communication center, a PC, or other equipment. A VE.Direct Bluetooth Smart dongle or a VE.Direct to USB interface is required for setup and data retrieval. Mounting and connection. Terminals up to 6 mm² (AWG10). Protection class IP43 for the electronic section and IP22 for the terminal section. Operating temperature -30 to +60 °C, full power up to 40 °C. Protected against reverse PV polarity, short circuit, and overtemperature. Can be ordered directly * Victron VE.Direct Bluetooth Smart dongle — ASS030536011 — product (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=41&artdetail=ASS030536011) * Victron VE.Direct to USB interface — ASS030530010 — product (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=41&artdetail=ASS030530010) * Victron VE.Direct cable 10m — ASS030530310 — product (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=41&artdetail=ASS030530310) * Victron VE.Direct non-inverting remote on-off cable — ASS030550320 — product (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=41&artdetail=ASS030550320) * Victron MPPT Control — SCC900500000 — product (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=41&artdetail=SCC900500000) * Victron MPPT WireBox-S 100-20 — SCC950140000 — product (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=41&artdetail=SCC950140000) * Cable set 6mm² 1.5 m red and black M8 — KABSET010060 — product (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=41&artdetail=KABSET010060) Related products * Victron BlueSolar MPPT 100/15 (12/24V) — SCC010015200R — view product (https://shop.top.systems/zonnestroom/omvormers-zonnepanelen/victron-bluesolar-mppt-100-15-12-24v.html) * Victron BlueSolar MPPT 100/30 (12/24V) — SCC020030200 — view product (https://shop.top.systems/zonnestroom/omvormers-zonnepanelen/victron-bluesolar-mppt-100-30-12-24v.html) * Victron SmartSolar MPPT 100/20 (12/24/48V) — SCC110020160R — view product (https://shop.top.systems/zonnestroom/omvormers-zonnepanelen/victron-smartsolar-mppt-100-20-12-24-48v.html) Documentation * Datasheet BlueSolar MPPT 75/10 – 100/20 (NL) (https://www.victronenergy.com/upload/documents/Datasheet-Blue-Solar-Charge-Controller-MPPT-75-10,-75-15,-100-15,-100-20_48V-NL.pdf) * Datasheet BlueSolar MPPT 75/10 – 100/20 (EN) (https://www.victronenergy.com/upload/documents/Datasheet-Blue-Solar-Charge-Controller-MPPT-75-10,-75-15,-100-15,-100-20_48V-EN-.pdf) * BlueSolar MPPT 75/10 – 100/20 Manual (NL) (https://www.victronenergy.com/upload/documents/Manual_BlueSolar_MPPT_75-10_up_to_100-20/29694-MPPT_solar_charger_manual-pdf-nl.pdf) * BlueSolar MPPT 75/10 – 100/20 Manual (EN) (https://www.victronenergy.com/upload/documents/Manual_BlueSolar_MPPT_75-10_up_to_100-20/29694-MPPT_solar_charger_manual-pdf-en.pdf) * Online manual BlueSolar MPPT 75/10 – 100/20 (NL) (https://www.victronenergy.com/media/pg/Manual_BlueSolar_MPPT_75-10_up_to_100-20/nl/index-nl.html) * Online manual BlueSolar MPPT 75/10 – 100/20 (EN) (https://www.victronenergy.com/media/pg/Manual_BlueSolar_MPPT_75-10_up_to_100-20/en/index-en.html) * Dimensions BlueSolar MPPT 100/20 (https://www.victronenergy.com/upload/documents/BlueSolar-SmartSolar-MPPT-100V20A-(Dimensions).pdf) * EU and UK Declaration of Conformity BlueSolar MPPT 100/20 (https://www.victronenergy.com/upload/documents/BlueSolar-MPPT-100-20-EU-and-UK-2024-02-16.pdf) * Safety Certificate EN/IEC 62109-1 (https://www.victronenergy.com/upload/documents/Certificate-Safety-EN-IEC-62109-1-BlueSolar–SmartSolar-MPPT-100-15-100-20-100-30–100-20_48V.pdf) * ECE R10-6 Certificate (https://www.victronenergy.com/upload/documents/Certificate-Automotive-ECE-R10-6-BlueSolar-&-SmartSolar-MPPT-75-10,-75-15,-100-15,-100-20.pdf) * UL 1741 and CSA C22.2 Certificate (https://www.victronenergy.com/upload/documents/Certificate-of-Compliance,-UL-1741-and-CSA-C22.2,-all-BlueSolar-&-SmartSolar-MPPTs-up-to-150-100.pdf) * ISO 9001 Certificate (NL) (https://www.victronenergy.com/upload/documents/ISO9001-certificate-2024-NL.pdf) * ISO 9001 Certificate (EN) (https://www.victronenergy.com/upload/documents/ISO9001-certificate-2024-EN.pdf) Videos * VictronConnect: how to change MPPT settings (https://www.youtube.com/watch?v=ve59J9WTm1E) * VictronConnect: MPPT live data (https://www.youtube.com/watch?v=8yJyFZuDkuA) * How to get a readout from an MPPT with a VE.Direct Bluetooth Smart dongle (https://www.youtube.com/watch?v=vZJA4eTd6vw) * Did you know: why the MPPT charge controller starts 5 Vdc above the battery voltage? (https://www.youtube.com/watch?v=EVAvRs32TiE) Contact We will determine with you whether MPPT or PWM is suitable for your panel and battery bank, and supply the installation complete with cable, connectors, and protection. Contact us (https://www.top.systems/nl/contact/). Specifications Specification Value Charge controller type MPPT Battery voltage 12 / 24 / 48 V, automatic detection Maximum charging current 20 A Rated PV power 12V 290 W Rated PV power 24V 580 W Rated PV power 48V 1160 W Maximum PV open-circuit voltage 100 V Maximum efficiency 98 % Self-consumption 25 mA (12V) / 15 mA (24V and 48V) Charging characteristic Multi-stage adaptive or user-defined Absorption voltage 14.4 / 28.8 / 57.6 V, adjustable Trickle voltage 13.8 / 27.6 / 55.2 V, adjustable Load output 20 A at 12V and 24V, 1 A at 48V, with BatteryLife Temperature compensation -16 / -32 / -64 mV/°C Communication port VE.Direct Protections Reverse PV polarity, output short circuit, overtemperature Terminals 6 mm² (AWG10) Operating temperature -30 to +60 °C, full power up to 40 °C Protection class IP43 electronics, IP22 terminal section Dimensions (hxwxd) 100 x 131 x 60 mm Weight 0.65 kg Standards EN/IEC 62109-1, UL 1741, CSA C22.2 no. 107.1-16 Warranty 5 years EAN 8719076049845 We would be happy to provide you with more information about this product. Please contact us
