Victron Lynx Distributor M10

Victron Lynx Distributor M10

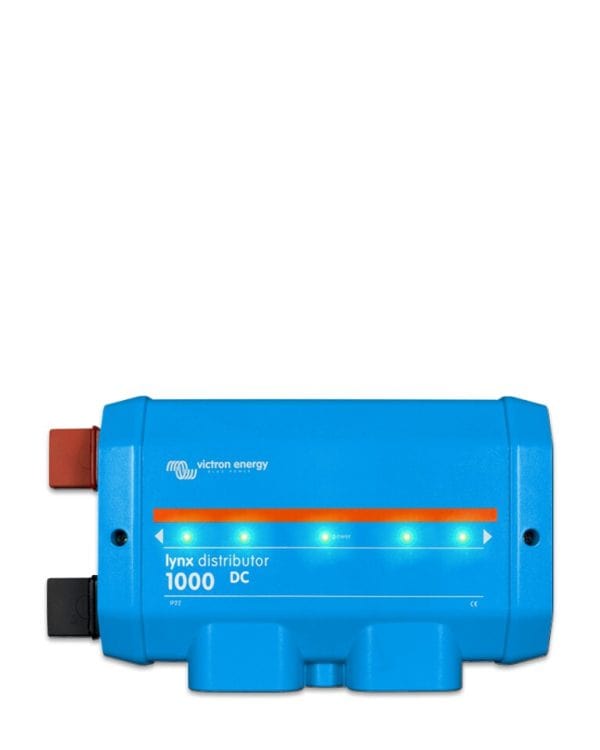

Victron Lynx Distributor M10 Victron Lynx Distributor M10 Applications The distribution module of the Lynx system: four fused outgoing groups from a single battery bank. For yachts, motorhomes, and off-grid installations where inverters, chargers, and consumers each require their own protected branch. Four fused connections The positive rail accommodates four DC fuses. The negative rail has four connections plus a ground connection, ensuring that positive and negative remain together within the same module and the wiring remains organized. LED monitoring per fuse Each fuse has its own LED on the front that displays its condition. A blown fuse is therefore immediately visible without opening or testing the module. Modularly expandable The module connects via the M10 rails to other Lynx components: a Lynx Power In, a Lynx Class-T Power In, a Lynx Shunt VE.Can, or a Lynx Smart BMS. This allows you to build the distribution system in the configuration that suits the installation. Features * Nominal current 1000 A DC * M10 connection between modules, M8 for fuse and cable connections * For 12, 24 and 48 V DC systems * Protective cap included Related products * Victron Lynx Shunt VE.Can (M10) (https://shop.top.systems/accu-s/accessoires-accu-s/victron-lynx-shunt-ve-can-m10.html) (LYN040102110) * Victron Lynx Power In M10 (https://shop.top.systems/installatie/dc-distributie/victron-lynx-power-in-m10.html) (LYN020102010) * Lynx Class-T Power In (M10) (https://shop.top.systems/installatie/dc-distributie/lynx-class-t-power-in-m10.html) (LYN060404010) * Victron Lynx Smart BMS 1000 (M10) (https://shop.top.systems/accu-s/accessoires-accu-s/victron-lynx-smart-bms-1000-m10.html) (LYN034170210) Documentation * Lynx Distributor M8 & M10 Manual (NL, PDF) (https://www.victronenergy.com/upload/documents/Lynx_Distributor/24531-Lynx_Distributor_Manual-pdf-nl.pdf) * Lynx Distributor M8 & M10 Manual (EN, PDF) (https://www.victronenergy.com/upload/documents/Lynx_Distributor/24531-Lynx_Distributor_Manual-pdf-en.pdf) * Online Manual (EN) (https://www.victronenergy.com/media/pg/Lynx_Distributor/en/index-en.html) * Dimensioning drawing Lynx Distributor M10 (EN) (https://www.victronenergy.com/upload/documents/Distributor-(M10).pdf) * Declaration of Conformity Lynx DC distribution (EN) (https://www.victronenergy.com/upload/documents/Lynx-DC-distribution-2023-08-28.pdf) Contact Would you like to build your DC distribution with the Lynx system and know which fuse values ​​apply to your circuits? Our specialists would be happy to draw it up with you. Please contact us (https://www.top.systems/nl/contact/). Specifications Nominal current 1000 A DC System voltage 12, 24 and 48 V DC Fuse positions positive rail 4 Connections negative rail 4 plus an earth connection Module connection M10 Fuse and cable connection M8 Fuse monitoring LED per fuse Protection class IP22 Protective cap Included Dimensions 290 x 170 x 170 mm Weight 2.3 kg We would be happy to provide you with more information about this product. Please contact us contact join us.
