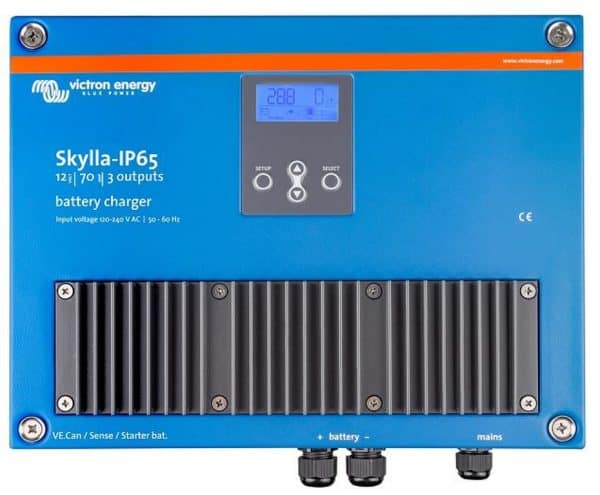

Victron Skylla-IP65 12/70 (3) 120-240V Victron Skylla-IP65 12/70 (3) 120-240V For yachts, workboats, and mobile installations with multiple separate battery banks. Three isolated outputs charge the service bank, starter battery, and bow thruster bank independently of each other, without isolation diodes and without voltage loss. Three isolated outputs Each output can deliver the full nominal charging current and is galvanically isolated from the others. This charger thus replaces a setup with isolation diodes or charge current distributors, including the associated voltage loss. 7-stage adaptive charging algorithm The charging algorithm adjusts absorption time and charging voltage to the state of the battery bank. A separate two-stage algorithm is available for lithium iron phosphate batteries, with on/off control or control via the VE.Can bus. Waterproof housing The steel, epoxy-powder-coated housing is protected to IP65 and resistant to heat, moisture, and salt air. The printed circuit boards are coated with acrylic lacquer to prevent corrosion. Automatic current reduction: Temperature sensors monitor critical components. Under extreme conditions, the charger reduces the output current instead of switching off, ensuring charging continues. Universal mains input: The charger operates on 120 to 240 VAC at 45 to 65 Hz, with a power factor of 0.98. This allows it to be used on virtually any shore power grid and generator power without modification. Remote communication and control: Two RJ45 connectors with NMEA2000 protocol enable connection to an onboard network or control panel. This allows the charge status, input current limiting, and fault messages to be viewed and configured remotely. Protections: The charger is protected against battery reverse polarity by a fuse, against output short circuits, and against overheating. Can be ordered directly with this * Red battery cable 16 mm² per meter (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=17&artdetail=KABRD0101600) — KABRD0101600 * Black battery cable 16 mm² per meter (https://shop.top.systems/default.asp?pageid=88&webgroupfilter=17&artdetail=KABZW0101600) — KABZW0101600 Related products * Victron Skylla-IP65 12/70 (1+1) 120-240V (https://shop.top.systems/omvormen-laden/acculaders/victron-skylla-ip65-12-70-1-1-120-240v.html) — SKY012070000 * Victron Skylla-IP65 24/35 (3) 120-240V (https://shop.top.systems/omvorm-laden/acculaders/victron-skylla-ip65-24-35-3-120-240v.html) — SKY024035100 Documentation * Manual Skylla-IP65 (NL) (https://www.victronenergy.com/upload/documents/Skylla-IP65/22926-Skylla-IP65-pdf-nl.pdf) * Manual Skylla-IP65 (EN) (https://www.victronenergy.com/upload/documents/Skylla-IP65/22926-Skylla-IP65-pdf-en.pdf) * Online manual Skylla-IP65 (EN) (https://www.victronenergy.com/media/pg/Skylla-IP65/en/index-en.html) * Skylla-IP65 Datasheet (NL) (https://www.victronenergy.com/upload/documents/Datasheet-Skylla-IP65-NL.pdf) * Skylla-IP65 Datasheet (EN) (https://www.victronenergy.com/upload/documents/Datasheet-Skylla-IP65-EN.pdf) * Skylla-IP65 Dimensions (EN) (https://www.victronenergy.com/upload/documents/DimensionDrawing_Skylla-IP65.pdf) * Skylla-IP65 Declaration of Conformity (EN) (https://www.victronenergy.com/upload/documents/Skylla-IP65-2022-07-04.pdf) * Skylla-IP65 Material Declaration (EN) (https://www.victronenergy.com/upload/documents/MD-Skylla-IP65-(1+1)+(3)-120-240V-191224.pdf) * ISO 9001 certificate (EN) (https://www.victronenergy.com/upload/documents/ISO9001-certificate-2024-EN.pdf) Contact Would you like to know if three outlets in your installation offer added value compared to a configuration with one plus one outlet? Our specialists would be happy to help you think about the complete charging installation. Please contact us (https://www.top.systems/nl/contact/). Specifications Battery voltage 12 V Charging current 70 A Outputs 3 isolated outputs Input voltage 120 – 240 VAC Input frequency 45 – 65 Hz Power factor 0.98 Charging algorithm lead-acid 7-stage adaptive Charging algorithm lithium 2-stage, with on/off control or VE.Can control Absorption voltage 14.4 V Trickle charge voltage 13.8 V Storage voltage 13.2 V Communication Two RJ45 connectors, NMEA2000 Protections Reverse battery polarity (fuse), output short circuit, over temperature Operating temperature -20 to 60 °C, full output current up to 40 °C Humidity Max. 95%, non-condensing Protection class IP65 Housing Steel, epoxy powder coated Safety EN 60335-1, EN 60335-2-29 EMC emission EN 55014-1, EN 61000-6-3, EN 61000-3-2 EMC immunity EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 Dimensions (hxwxd) 401 x 265 x 151 mm Weight 6 kg EAN 8719076051978 We would be happy to provide you with more information about this product. Please contact us contact join us.
