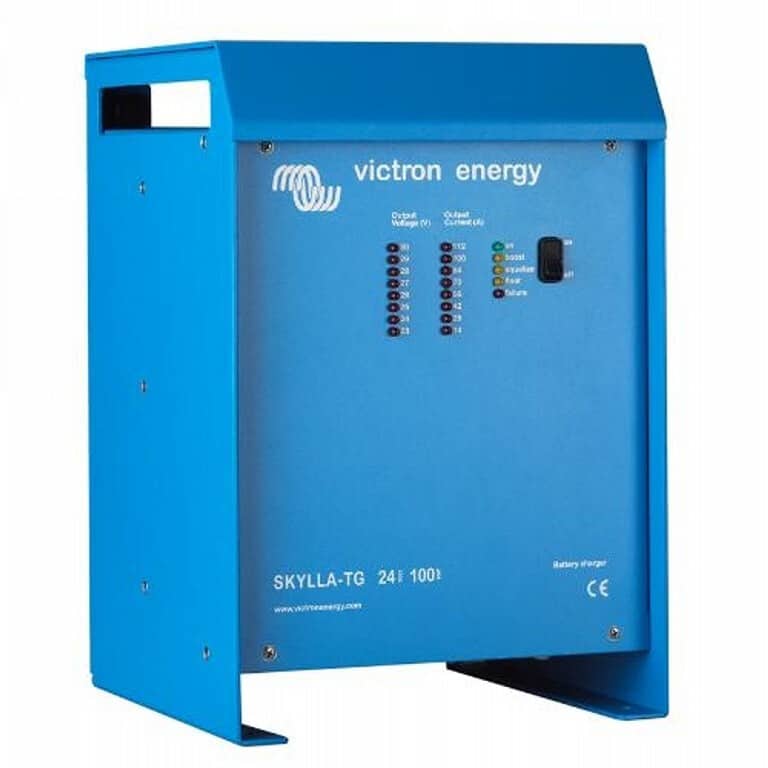

Victron Skylla-TG 24/100 (1+1) GL 90-265V AC

Victron Skylla-TG 24/100 (1+1) GL 90-265V AC

Victron Skylla-TG 24/100 (1+1) GL 90-265V AC This Skylla-TG GL battery charger for 24V systems features a charging current of 100A and an input voltage range of no less than 90-265V AC. Skylla-TG battery chargers are microprocessor-controlled and can be used as a power supply. The 3-stage charging process follows the IUoUo characteristic and is faster than other charging processes. With built-in battery voltage detection, voltage loss due to cable resistance can be compensated, and with the included battery temperature sensor, temperature-compensated charging is possible. Universal 90-265V AC input voltage range and also suitable for DC power supply. All models operate without the need for adjustment for a 90 to 265 Volt input voltage range, for both 50Hz and 60Hz. The chargers also accept a 90-400V DC power supply. Two outputs for charging two batteries The TG chargers have 2 mutually isolated outputs. The second output, intended for charging a starter battery, is limited to 4 A and has a slightly lower output voltage. Extending battery life: Temperature Compensation A temperature sensor is included with every TG charger. The temperature sensor ensures that the charging voltage decreases when the battery temperature rises. This is particularly important for maintenance-free batteries, which might otherwise dry out due to overcharging. 'Voltage Sensing': measuring charging voltage at the battery or at the DC distribution point To compensate for voltage loss due to cable resistance, the TG chargers are equipped with 'Voltage Sensing' so that the battery always receives the correct charging voltage. Can be used as a power supply Thanks to the perfectly stabilized output voltage, a TG charger can be used as a power supply in the absence of batteries or large buffer capacitors. Germanischer Lloyd Approval This series of chargers is approved by Germanischer Lloyd (GL) for environmental category C, EMC 1. Category C applies to weather-protected equipment. EMC 1 applies to output and radiation emission limits for equipment installed on the bridge of a ship. The approval for GL C, EMC1 implies that the chargers also meet the requirements of IEC 609452002, categories 'protected' and 'equipment installed on the bridge of a ship'. The GL certification applies to 185-265 V AC power supply. We would be happy to provide you with more information about this product. Please contact us contact join us.
